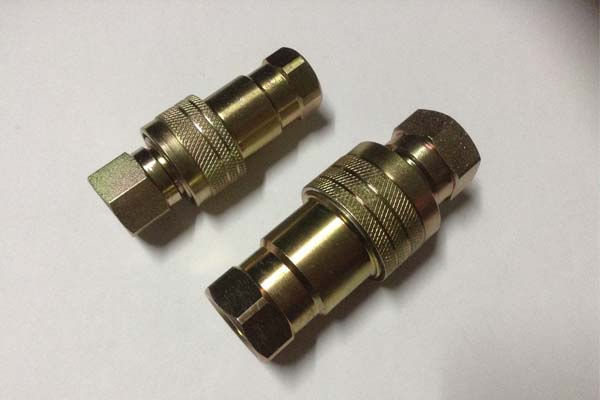

Top Quality Steel ISO A Hydraulic Quick Couplings

7241AS quick couplings are connection by pulling back the sleeve and disconnection by pulling back the female sleeve. 7241AS is shut off by poppet valve. But don’t connect or disconnect both parts under pressure.

Details

Part no.: 7241AS(A Series Hydraulic Quick Couplings(Steel) )
High grade carbon steel with heat treated wear parts.
Polyurethane and NBR backup ring in PTEF
Temp.: -25℃ to +100℃

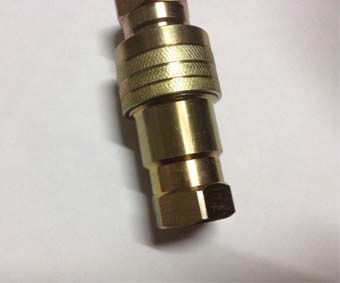

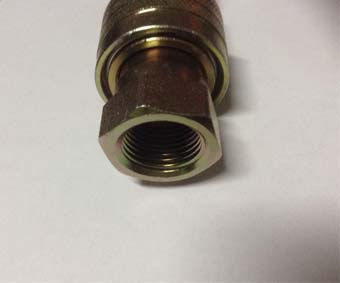

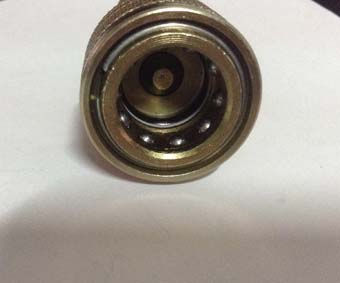

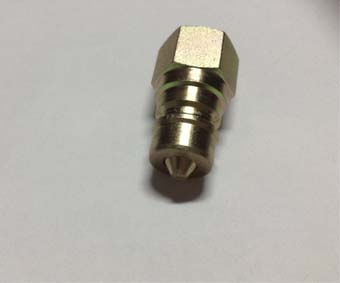

Quick Couplings details

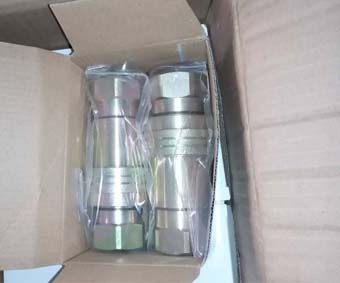

Package details

Technical Data Table

Thread type 1: BSP
Technical Data Table

Part no.	Thread	Amm.	Cmm.	Dmm.
7241ASS-02PF	G1/4	32.0	19.0	22.0
7241ASS-03PF	G3/8	37.0	22.0	26.0
7241ASS-04PF	G1/2	46.0	27.0	31.0
7241ASS-22PF	M22X1.5	46.0	27.0	31.0
7241ASS-06PF	G3/4	58.0	35.0	40.0
7241ASS-08PF	G1	66.0	41.0	48.0
7241ASS-10PF	G1.1/4	75.0	54.0	59.0
7241ASS-12PF	G1.1/2	86.0	60.0	68.0
7241ASS-16PF	G2	100.0	77.0	84.0

Thread type 2: NPT
Technical Data Table

Part no.	Thread	Ain.	Cin.	Din.
7241ASS-N02PF	NPT1/4	1.27	0.75	0.87
7241ASS-N03PF	NPT3/8	1.47	0.88	1.01
7241ASS-N04PF	NPT1/2	1.82	1.06	1.23
7241ASS-U34PF	UNF3/4	1.82	1.06	1.23
7241ASS-N06PF	NPT3/4	2.29	1.38	1.59
7241ASS-N08PF	NPT1	2.58	1.62	1.88
7241ASS-N10PF	NPT1.1/4	2.95	2.12	2.32
7241ASS-N12PF	NPT1.1/2	3.38	2.36	2.67
7241ASS-N16PF	NPT2	3.93	3.03	3.30

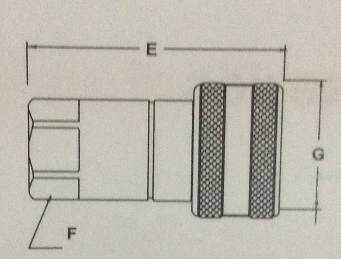

Female Part Drawing
