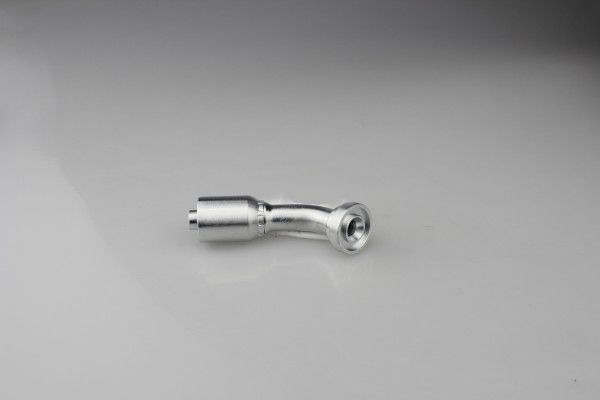

Top Quality Hotsell CAT Hyrdraulic Flange Fitting

87342one piece are 45 degrees SAE flange 3000PSI for four wire braided hydraulic hoses such as 4SH, 4SP, R12, etc. 87342one piece fittings can be crimped with hydraulic hoses directly. Complete sizes production is involved in YH Hydraulic daily. YH can ensure good quality and lower prices offered to customers.

Details

Material:Carbon Steel, Stainless steel/Carbon steel/Brass
Technics:Forged
Type:Flange
Place of Origin:China (Mainland)
Brand Name:YH
Connection:Flange
Shape:Equal
Head Code:Hexagon
Standard:Metric/BSP/NPT/JIC/GB
Product name:CAT Hyrdraulic Flange Fitting
Certificate:ISO9001:2008/ISO10041/OHSAS/CE
Usage:Hydraulic system
Keyword:Hydraulic fitting
Main marker:America/Japan/Europe

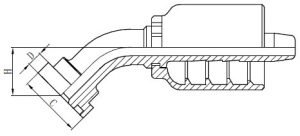

Technical Data Table

代号 PART NO.	法兰尺寸 FLANGE SIZE	胶管 HOSE BORE		尺寸 DIMENSIONS
代号 PART NO.	法兰尺寸 FLANGE SIZE	公称内径DN	标号 DASH	C	D	L	H
87342-08-08one piece	1/2"	12	08	30.2	23.9	7	23
87342-12-12one piece	3/4"	20	12	38.1	31.7	7	29
87342-16-16one piece	1"	25	16	44.4	38	8.2	30
87342-20-20one piece	1.1/4"	32	20	50.8	43.2	8.2	34
87342-24-24one piece	1.1/2"	40	24	60.3	50.3	8.2	42
87342-32-32one piece	2"	50	32	71.4	62.2	9.8	49

Product Description

1.the salt spray test time can reach 140h
2.Plating in Trivalent Chromium Electrolytes Plating in Trivalent Chromium Electrolytes and environment friendly
3.bring in Janpan Friction welding machinery ensure high quality,clean,efficent,environment protection
4.easy to highten and lenghten,precision cold-drawn tube :clean and doesn't make oil's temperture high up
5.hose fitting's fatigue life can reach 1200 thousand time
6.Anaerobic annealing,not rust,not easy to fracture)
7.can make Net pressure test
8.High precision,all edges without Burr,brake sharp edges
9.We accept OEM or ODM

Packaging

Inner packaging
For brass fitting ,we used nylon bags do inner packaging , Nylon bag can reduce oxidation occurred , To prevent rust And keep the brass luster.
Retail packaging
We put 50 or 100 pcs of brass ball valve in one carton box . Ensure that a sufficient quantity ,and protect goods in transfer.
Transfer packaging
For export we put goods in Moisture-proof packaging ,and put wooden box out side . Ensure that the product in transit in good condition.
custom packaging
We can According to your requirements for product packaging ,we can print your logo on carton or goods. to help your Smooth business.

Shipping

Sample shipping
For sample order we usually transfer by express,like FedEX UPS TNT and China EMS . usually you can get samples in one week . and if you need ,we can provide 1-3 pcs sampes by free.
Final order shipping
For final order . we can do air transfer and sea shipping . our factory are close to airport and seaport . usually transfer 1-5 ton goods to port cost 200 $ .
