Swaged Metric Female Stainless Steel Hydraulic Hose Pipe Fitting

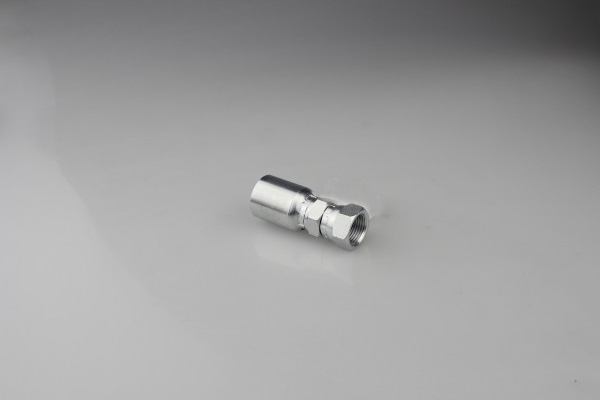

30511one piece are metric female 24 degrees cone heavy type with O-ring integral fittings for one or two wire braided hydraulic hoses. 30511one piece fittings can be crimped with related hoses directly. One piece fittings are finished with zinc plated to customers’ requirements. Standard sizes are showed below on technical data table. Different sizes are acceptable in our factory.

Details

Part no.: 30511one piece(Metric Female 24°Cone H.T. With O-ring Integral Fitting For One or Two-Wire Hose)

Related types: 30511 fittings; 00110 ferrules or 00210 ferrules; R1AT hoses; R2AT hoses; R1A hoses; R2A hoses; 1SN hoses, 2SN hoses, etc.

Equipment related; CNC machines, automatic punch; raw material cutter; ferrule(nut) crimping machine, etc

Coating: white zinc-plated; yellow zinc-plated; chrome plated; nickel plated

Technical Data Table

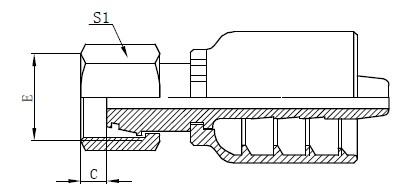

Drawing

      代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE管子外径

TUBE O.D.

尺  寸   DIMENSIONS
公称内径DN标 号 DASHCS1
30511-16-04one pieceM16X1.56048222
30511-18-04one pieceM18X1.560410224
30511-20-05one pieceM20X1.580512327
30511-20-06one pieceM20X1.5100612327
30511-22-06one pieceM22X1.5100614327
30511-24-08one pieceM24X1.5120816330
30511-30-10one pieceM30X21610203.536
30511-36-12one pieceM36X2201225341
30511-36-14one pieceM36X2221425341
30511-42-16one pieceM42X2251630550
30511-52-20one pieceM52X23220386.560
30511-52-24one pieceM52X24024386.560
Product Specification
Brand Name
HY
Material
Carbon steel, stainless steel, aluminum
Surface Treatment
Zinc plating, nickle plating
Technology
Hot forging
Weight
According to your order
Package
Carton, pallet or wooden box as your need
MOQ
100pcs
Certificate
CE, ISO: 9001
OEM Service
Available
Guarantee
Change when the hoses are broken
Delivery Way
Air trabsportation, express delivery, sea shipping according to your order and need
Delivery Time
7-30 days after receving your payment
Payment Terms
30% T/T payment in advance, and 70% before the shipment
Samples Available
Samples are free with you pay the freight
Samples Delivery
DHL, TNT, UPS, FEDEX, EMS, etc.

Quick Details

Material: Carbon Steel
Technics: Forged
Type: Cap, METRIC JIC BSP NPT ORFS JIS
Place of Origin: Hebei, China (Mainland)
Model Number: HT- fitting
Brand Name: HY
Connection: Female
Shape: Reducing
Head Code: Round
Product Name: Swaged Metric Female Stainless Steel Hydraulic Hose Pipe Fitting
Surface Treatment: Zinc Plating, Nickel Plating
Standard: EATON
Certificate: ISO9001:2008
Usage: Oil Gas Water Industrial
Technology: Hot Forging
Color: White, Yellow
Size: 1/4''~2''
Service: OEM Service
