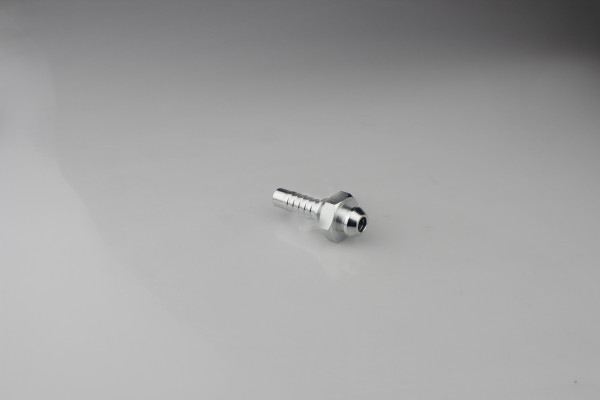

Swaged Hydraulic Hose Fitting

20611 hose fittings are metric female 60°cone crimped type which sizes are available from M14 t M27. Hydraulic hose fittings are widely used in the connection of machines. So we are offering a comprehensive line of hydraulic fittings. Our production includes complete thread types and sizes for different hydraulic hoses.

Details

---

Part no.: 20611(Metric Female 60°Cone Crimped Type)

Brand name: YH; others are available

Package details: Nylon plastic; corrugated carton; multiple plywood case

Custom-orientated service: produce according to drawings or samples provided, offer custom-design

Advantage: 1. High quality 2. Rich inventory 3. Prompt delivery 4. Reasonable price 5. Best service

Technical Data Table

---

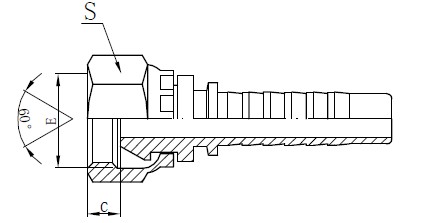

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸 DIMENSIONS
		公称内径DN	标 号 DASH	C	S
20611-14-05	M14x1.5	8	05	6.5	19
20611-16-06	M16x1.5	10	06	7	22
20611-18-08	M18x1.5	12	08	7.5	24
20611-22-10	M22X1.5	16	10	7.5	27
20611-24-10	M24X1.5	16	10	9	30
20611-27-12	M27X1.5	20	12	8	32

Product Feature

---

Convenient one-touch fittings provide instant tubing connections
Plug connection: threaded and hose barb ends available
Material type :Steel , Zinc Alloy , aluminium , Brass
Brass with good nice nickel plated
Each and every pcs was tested at 10kgs/cm2

---
