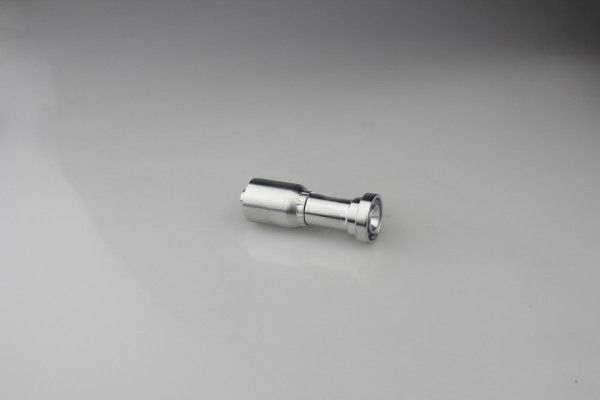

87611one piece fittings are SAE flange 6000PSI for one or two-wire integral fittings. Sizes from 08 to 32 are involved in YH production daily. 87611one piece fittings are 87611 fittings crimped with 00210 or 00110 ferrules by ferrule crimping machines. Good quality materials are put into production so that good quality products can be ensured. One piece fittings are all manufactured by CNC machine to control the high precision demands.

Details

Model NO:  87611
Type: Quick Connector
Main Market: Russian, Ukraine, USA, Brazil
Color: White
Application: Hydraulic Hose and Fitting
Standard: Eaton, Parker
Certificate: SGS/ISO
Usage: Oil Gas Water Industrial
Packing: Box Inside & Wooden Pallets
Trademark: Gema
Specification: 1/8"-2"
Origin: Zhejiang

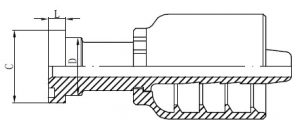

Technical Data Table

     代号

PART NO.

法兰尺寸

FLANGE SIZE

胶管

HOSE BORE

尺  寸

DIMENSIONS

公称内径DN标 号 DASHCDL
87611-08-08one piece1/2"120831.823.97.9
87611-12-12one piece3/4"201241.331.78.9
87611-16-16one piece1"251647.6389.6
87611-20-20one piece1.1/4"32205443.610.4
87611-24-24one piece1.1/2"402463.550.812.7
87611-32-32one piece2"503279.466.512.7

Product Description

stainless steel Jic Bsp Male Hydraulic Fittings 87611
We are manufacturing and marketing all kinds of hydraulic fittings, we can also produce according to customers' drawings or samples.
1. Swaged Metric Fittings
Mertic Flat Seal Fittings
Metric Multiseal Fittings
Metric 60°Cone Seal Fittings
Metric 74°Cone Seal Fittings
Metric 24°Cone O-RING Seal L..T Fittings
Metric 24°Cone O-RING Seal H.T.Fittings
Metric Standpipe Straight Fittings
JIS Metric 60°Cone Seal Fitting
2. Swaged British Fittings
BSP O-RING Seal Fittings
BSP Flat Seal Fittings
BSP Multiseal Fittings
BSP 60°Cone Seal Fittings
BSPT Fittings
JIS BSP 60°Cone Seal Fittings
3. Swaged American Fittings
SAE O-RING Seal Fittings
ORFS Flat Seal Fittings
NPSM 60°Cone Seal Fittings
JIC 74°Cone Seal Fittings
NPT Fittings SAE Flange L.T. Fittiings
SAE Flange H.T.Fittings
4. Staplelok Fittings
Banjo Double connection
Interlock Hose Fittings
5. Ferrule
Ferrule for SAE100R1AT/ EN 853 1SN Hose
Ferrule for SAE100R1A EN 853 1ST Hose
Ferrule for SAE100R2AT/DIN20022 2SN Hose
Ferrule for SAE100R2A/EN 853 2SN Hose
Ferrule for SAE100R1AT-R2AT, EN853 1SN-2SN and EN 857 2SC
Ferrule for 4SP, 4SH/10-16,R12-06-16 Hose
Ferrule for 4SH, R12/32 Hose
6. Metric Adapters
1. Material: Carbon Steel or Stainless Steel .
2. surface: Zinc Plating . Silver & Yellow
3. Packing: Inner in Poly bag, Master in cartons, then put in wooden case or pallet.
4. OEM Service: can produce according buyer"s drawing or samples.
5. how can i get samples ?:please contact as following for better communication .

FAQ

Q: Is it stainless steel fitting?
A: It is made of carbon steel, if you need stainless steel one, we also can produce it for you.
Q: Is it standard hydraulic fitting?
A: Yes, all of our hydraulic fittings are standard parts.Each of hydraulic hose can find our hydraulic fittings to fit for.
Q: Can you print model and our brand on the ferrule and fitting?
A: We can print model and your brand on the ferrule, but there is no enough space to print them on the fitting, just logo is ok.
Q: Can you produce fitting according to sample or drawings?
A: Yes, we can produce fitting according to your samples or drawings.
Q: Can you galvanize zinc in golden color?
A: Yes, it can be made in golden color, anyway, we suggest to use siliver zinc plated fitting because it is ROHS compliant.
