SAE-100R12-Hose-Reinforcement

Details

Part no.: SAE 100 R12

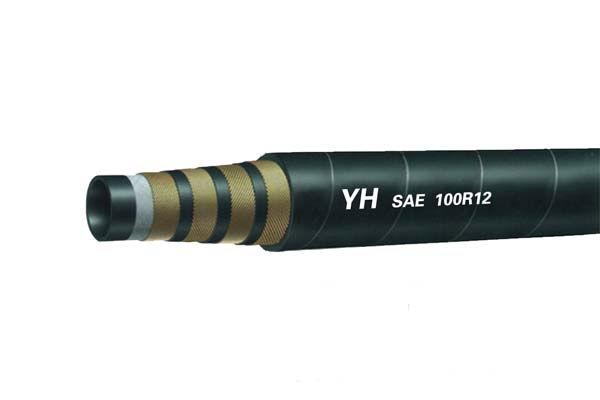

Construction: This hose consists of an inner tube of oil synthetic rubber, four spiral wire reinforcement, an oil and weather resistant synthetic rubber cover.
Suitable temp.: -40 ℃ to +100 ℃
Brand: YH; other logo marking is acceptable
Samples: total less than 1 meter is free if stock available

Technical Data Table

名义直径

Nominal

Diameter

内径

Inside  diameter mm

钢丝层直径

Reinforcement

Diameter mm

外径

Outside diameter mm

工作压力working pressure MPa试验压力

Proof pressure

MPa

爆破压力burst pressure

MPa

最小弯曲

Min. bend

Radius

mm

MinMaxMinMaxMinMaxMinMaxMaxMin
12.51/215.513.519.921.523.024.628.056.0112.0180
165/812.316.723.825.426.628.228.056.0112.0205
193/418.619.826.928.429.931.528.056.0112.0240
25125.026.434.135.736.839.228.056.0112.0300
31.51.1/431.433.042.745.145.448.621.042.084.0420
381.1/237.739.349.251.651.955.017.035.070.0500
51250.452.062.564.865.168.317.535.070.0630

Packaging & Shipping

1. With plastic and hessian clothes packed to roll.
2. Plastic and Hessian clothes wit h pallet under the rubber hose.
3. Wooden box (common for hose assembly packed).
4. Special packing is available according to customers' requirements.

Our Service

Four advantages let you trust us:
1.YH is a trusted professional hydraulic hose manufacturer, we have more than 10 years of production experience.
2.We own 186 sets of various processing testing machines to make sure good quality hose and fast delivery time.
3.YH promises to provide professional after-sales service, solve all kinds of technical problems at any time until customer satisfy.
