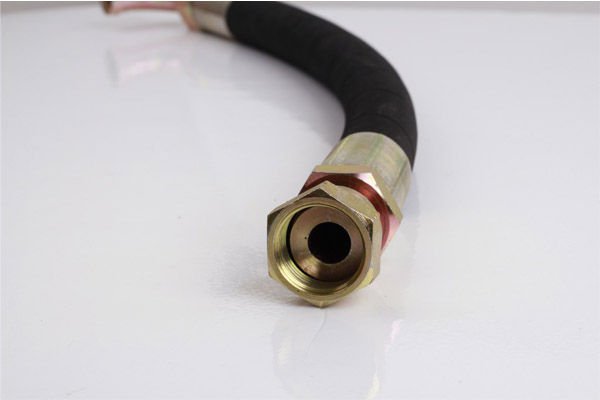

R12-High-Pressure-Hose

Details

Part no.: YH-R12-30212(Hose: SAE 100R12; Fitting: Metric Female Flat Seal For Spiral Hose)
Ferrule type: 00400(ferrule for four wire braided hose such as R12, 4SP, 4SH, etc)
Material: fittings are manufactured with 45 carbon steel; ferrules are with 20 carbon steel.
Temp.: available for -40℃ up to +100℃(Max.: +120℃)
Delivery time: less than 10 days if fittings and hoses are in stock
Delivery ports: available for Ningbo port, Shanghai port, Guangzhou port, etc.

Technical Data Table

名义直径

Nominal

Diameter

内径

Inside  diameter mm

钢丝层直径

Reinforcement

Diameter mm

外径

Outside diameter mm

工作压力working pressure MPa试验压力

Proof pressure

MPa

爆破压力burst pressure

MPa

最小弯曲

Min. bend

Radius

mm

MinMaxMinMaxMinMaxMinMaxMaxMin
12.51/215.513.519.921.523.024.628.056.0112.0180
165/812.316.723.825.426.628.228.056.0112.0205
193/418.619.826.928.429.931.528.056.0112.0240
25125.026.434.135.736.839.228.056.0112.0300
31.51.1/431.433.042.745.145.448.621.042.084.0420
381.1/237.739.349.251.651.955.017.035.070.0500
51250.452.062.564.865.168.317.535.070.0630

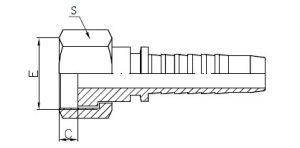

Fitting Technical Data

代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE尺  寸   DIMENSIONS
公称内径DN标 号 DASHCS
30212-22-08M22X1.512081027
30212-30-12M30X1.5201211.536
30112-36-14M36X222141341
30112-36-16M36X225161341
30212-39-16M39X225161346
30212-42-16M42X225161550
30212-45-20M45X232201555
30212-52-20M52X232201760
30212-52-24M52X238241760
30212-64-32M64X250322375

Characters

1. It provides superior oil resistance, heat resistance, and aging resistance by using special synthetic rubber ;
2.It provides high pressure resistance and superior impulse resistance ;
3. It provides superior bonding in hose internal , soft use and small deformation under pressure ;
4.It provides superior kink resistance and fatigue resistance and long services life .
