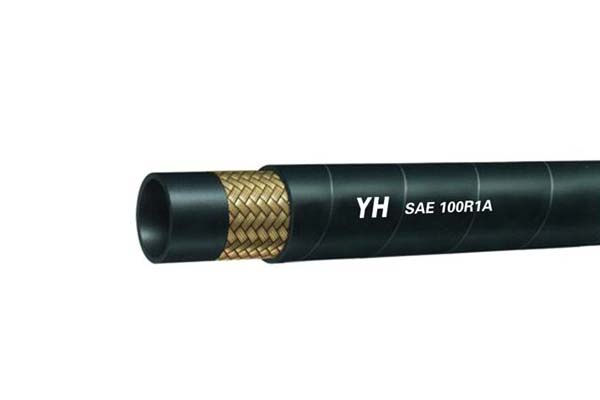

Sae 100r1a/1at 2a/2at High Pressure Hydraulic Hose/rubber Hydraulic Hose

Item SAE 100R1A is popular hydraulic hoses in YH factory. YH factory is a professional rubber hoses manufacturer in Ningbo, China. Dimensions of hoses are designed and produced to international quality standards. SAE 100R1A hose do well in connection in many mining machines such as Caterpillar, Komatsu, Volvo, etc.

Details

Part no.: SAE 100R1A
Reinforcement: One braids of high-tensile steel wire.
Temperature Range: -40℃ to +100℃
Cover Compound: Abrasion and weather resistant synthetic rubber.
Application: High pressure hydraulic oil lines used in construction, machine tools and agricultural applications using petroleum or water based hydraulic fluids.

Technical Data Table

名义直径 Nominal Diameter		内径 Inside diameter mm		钢丝层直径 Reinforcement Diameter mm		外径 Outside diameter mm		工作压力working pressure MPa	试验压力 Proof pressure MPa	爆破压力burst pressure MPa	最小弯曲 Min. bend Radius mm
Min	Max	Min	Max	Min	Max	Min	Max	Max	试验压力 Proof pressure MPa	min	最小弯曲 Min. bend Radius mm
5	3/16	4.6	5.4	8.9	10.1	11.9	13.5	21.0	42.0	84.0	90
6.3	1/4	6.2	7.0	10.6	11.7	15.1	16.7	19.2	38.4	76.8	100
8	5/16	7.7	8.5	12.1	13.3	16.7	18.3	17.5	35.0	70.0	115
10	3/8	9.3	10.1	14.5	15.7	19.0	20.6	15.7	31.4	62.8	125
12.5	1/2	12.3	13.5	17.5	19.0	22.2	23.8	14.0	28.0	56.0	180
16	5/8	15.5	16.7	20.6	22.2	25.4	27.0	10.5	21.0	42.0	205
19	3/4	18.6	19.8	24.6	26.2	29.4	31.0	8.7	17.4	34.8	240
25	1	25.0	26.4	32.5	34.1	36.9	39.3	7.0	14.0	28.0	300
31.5	1.1/4	31.4	33.0	39.3	41.7	44.4	47.6	4.3	8.6	17.2	420
38	1.1/2	37.7	39.3	45.6	48.0	50.8	54.0	3.5	7.0	14.0	500
51	2	50.4	52.0	58.7	61.9	65.1	68.3	2.6	5.2	10.3	630
