Rubber Hose Steel Wire Braided Reinforced Hydraulic Rubber Hose

Hydraulic rubber hoses(GB/T3683.1-2006 1) are components of hose assemblies. The good quality values much when equipped to assemblies. It can ensure assemblies without leaking oil. Hydraulic hoses include three parts which are inner rubber layer, steel wire braid layer, and outer rubber layer. We control quality of each parts production which can be visited in YH factory.

Details

Part no.: GB/T3683.1-2006 1

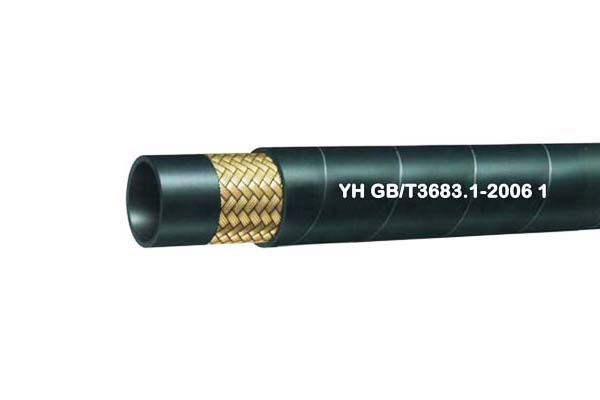

Construction: rubber hose is composed of inner rubber layer, steel wire braid layer, outer rubber layer.
Applications: it is applicable for conveying the hydraulic fluid such as alcohol, hydraulic oil, emulsion, water and so on.
Working Temperature: From --40℃ up to +100℃
Reference Specification: GB/T3683.1-2006 Type 1
Outer Appearance: Black linen type

Technical Data Table

型号 TYPE	公称内径 I.D.	参考外径 O.D.	钢丝层外径 Reinforcement diameter	工作压力 W.P.	试验压力 P.P.	最小爆破压力 B.P.	最小弯曲半径 Min. bend radius
型号 TYPE	mm	mm	mm	MPa	MPa	MPa	mm
6-1	6.3	15	11.6±0.5	20	40	80	100
8-1	8	17	13.6±0.5	17.5	35	70	115
10-1	10	19	15.6±0.5	16	32	64	128
13-1	12.5	23	19.5±0.6	14	28	56	180
16-1	16	25	22.5±0.6	12	24	48	205
19-1	19	29	25.6±0.6	10	20	40	240
22-1	22	32	28.5±0.6	9	18	36	280
25-1	25	36	31.9±0.6	8	16	32	300
32-1	31.5	43	39.2±0.8	6	12	24	420
38-1	38	49	45.2±0.8	5	10	20	50
51-1	51	62	58.3±1.0	4	8	16	630
64-1	64	76	72.0±1.0	2.5	5	10	800
76-1	76	89	84.0±1.0	1.5	3	6	920
