AJOJ-OG is JIC male 74 degrees cone with SAE o-ring boss branch tee. AJOJ-OG series have complete sizes showed on technical data table which are welcome by customers mostly. YH also involved in other thread types and sizes producing. We welcome you to send us descriptions or pictures for confirming in advance.

Details

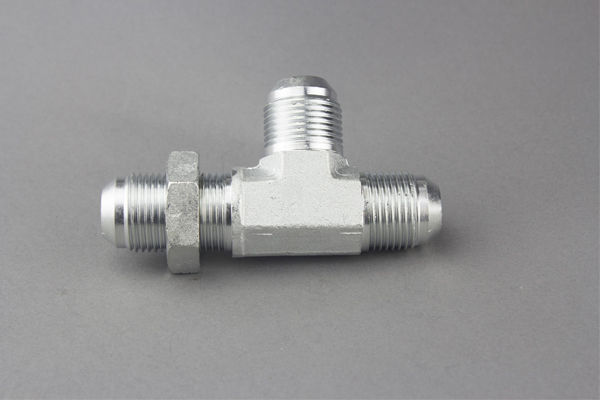

SAE-O-ring-Boss-AdapterPart no.: AJOJ-OG(JIC male 74 degrees cone/ SAE o-ring boss branch tee)
Types: Straight for two ends; Elbow for two ends; Three ends types
Logo: YH; other customer required logo on products are acceptable
Custom-orientated: YH can provide OEM service with customers’ drawings or samples presented
After-sales: to confirm good quality provided, we give after sales service to customers.

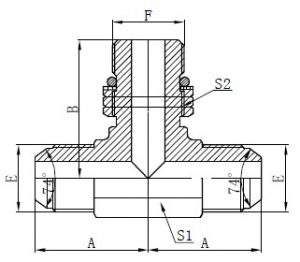

Technical Data Table

代号

PART NO.

螺纹THREAD尺寸 DIMENSIONS
 E/G FABS1S2
AJOJ-04OGU7/16"X20U7/16"X2024.527.21117
AJOJ-05OGU1/2"X20U1/2"X2025291417
AJOJ-05-04-05OGU1/2"X20U7/16"X2025301417
AJOJ-06OGU9/16"X18U9/16"X182531.81419
AJOJ-06-04-06OGU9/16"X18U7/16"X2025301417
AJOJ-06-05-06OGU9/16"X18U1/2"X2025301417
AJOJ-08OGU3/4"X16U3/4"X1627.536.81924
AJOJ-08-06-08OGU3/4"X16U9/16"X1827.533.51919
AJOJ-10OGU7/8"X14U7/8"X1430442227
AJOJ-10-08-10OGU7/8"X14U3/4"X1630402224
AJOJ-12OGU1.1/16"X12U1.1/16"X1235512432
AJOJ-12-08-12OGU1.1/16"X12U3/4"X1635442424
AJOJ-12-10-12OGU1.1/16"X12U7/8"X1435492427
AJOJ-16OGU1.5/16"X12U1.5/16"X124354.53341
AJOJ-20-16-20OGU1.5/8"X12U1.5/16"X125959.54441
AJOJ-20OGU1.5/8"X12U1.5/8"X1259594450
