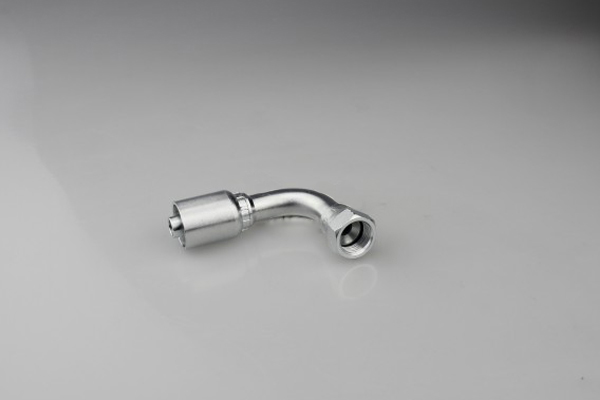

30491one piece is 90 degrees metric female 24 degrees cone light type with o-ring integral fitting for one or two steel wire braided hydraulic hoses. YH specialize in producing DK, DKOS, DKOL, and DKI fittings for more than 10 years. Fittings are finished by zinc coating to protect from oxidization.
Details
Part no.: 30491 one piece(90 degrees metric female 24 degrees cone light type with o-ring one or two wire integral fitting)
Application: Integral fittings equipped with hydraulic to make hose assemblies directly
Material: Ferrule with mild steel; fitting with 45 carbon steel
Sizes: introduced on technical data meet most hoses demands
Color: white, yellow, silver, blue(available)
Technical Data Table

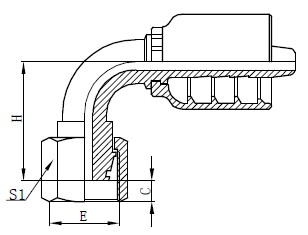

Drawing
代号 PART NO. | 螺纹E THREAD E | 胶管 HOSE BORE | 管子外径 TUBE O.D. | 尺 寸 DIMENSIONS | |||
公称内径DN | 标 号 DASH | C | S1 | H | |||
30491-14-04one piece | M14X1.5 | 6 | 04 | 8 | 2 | 19 | 36 |
30491-16-05one piece | M16X1.5 | 8 | 05 | 10 | 2 | 22 | 37 |
30491-18-06one piece | M18X1.5 | 10 | 06 | 12 | 2.5 | 24 | 42 |
30491-22-08one piece | M22X1.5 | 12 | 08 | 15 | 3 | 27 | 45 |
30491-27-10one piece | M27X1.5 | 16 | 10 | 18 | 2.5 | 32 | 55 |
30491-30-12one piece | M30X2 | 20 | 12 | 22 | 3.5 | 36 | 64 |
30491-36-16one piece | M36X2 | 25 | 16 | 28 | 4.5 | 41 | 67 |
30491-45-20one piece | M45X2 | 32 | 20 | 35 | 5 | 55 | 76 |
30491-52-24one piece | M52X2 | 40 | 24 | 42 | 6 | 60 | 88 |
Product Specification | |
Brand Name | YH |
Material | Carbon steel, stainless steel, aluminum |
Surface Treatment | Zinc plating, nickle plating |
Technology | Hot forging |
Weight | According to your order |
Package | Carton, pallet or wooden box as your need |
MOQ | 100pcs |
Certificate | CE, ISO: 9001 |
OEM Service | Available |
Guarantee | Change when the hoses are broken |
Delivery Way | Air trabsportation, express delivery, sea shipping according to your order and need |
Delivery Time | 7-30 days after receving your payment |
Payment Terms | 30% T/T payment in advance, and 70% before the shipment |
Samples Available | Samples are free with you pay the freight |
Samples Delivery | DHL, TNT, UPS, FEDEX, EMS, etc. |
