one piece crimping hydraulic hose fittings bsp jic metric threaded

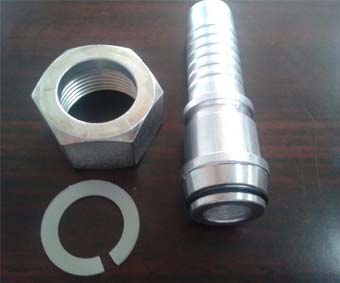

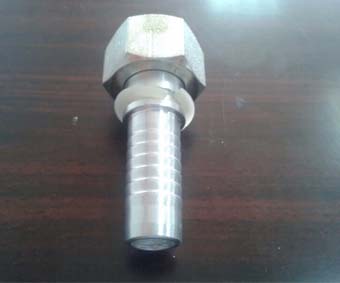

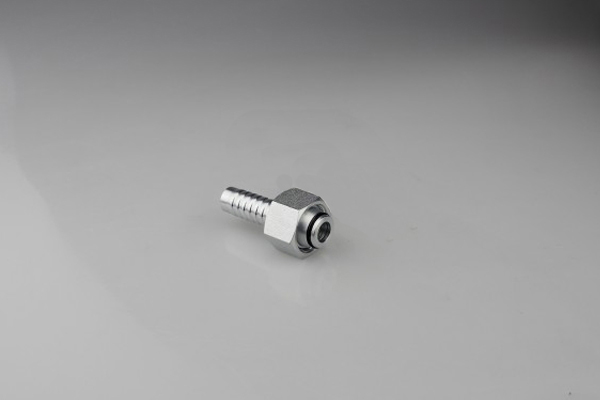

30411 fittings are metric female 24°cone light type with o-ring which is based on standard DIN3853. 30411 fittings are non-crimped types compared with 20411 fittings. Hose fittings are exported to markets such as Europe, South America, South Asia, Africa, etc. As good quality provided, we have obtained a high reputation from our customers.

Details

---

Part no.: 30411(Metric Female 24°Cone L.T. With O-ring DIN3853: Non-crimped Type)

Related items: 20411(Crimped types); 30511(Heavy type); 30441(45 degrees elbow); 30491(90 degrees elbow)

OEM service: we can provide OEM service with samples, drawings, or requirements presented

Samples: less than 5pcs is free of charged for checking product quality.

Delivery time: less than one week for stock products; less than 50 days for an order if it is small or big.

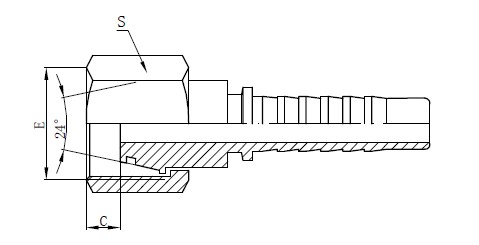

Technical Data Table

---

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		管子外径 TUBE.O.D	尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH		C	S
30411-14-04	M14x1.5	6	04	8	2	17
30411-16-05	M16x1.5	8	05	10	2	19
30411-18-06	M18x1.5	10	06	12	2.5	22
30411-22-08	M22x1.5	12	08	15	3	27
30411-26-10	M26x1.5	16	10	18	3.5	32
30411-27-10	M27X1.5	16	10	18	2.5	32
30411-30-12	M30X2	20	12	22	3.5	36
30411-36-16	M36X2	25	16	28	4.5	41
30411-45-20	M45X2	32	20	35	5	55
30411-52-24	M52X2	40	24	42	6	60

We are specialized in hydraulic hose fittings, ferrules, adaptors, couplings, stainless steel fittings & brass fittings

1. Hydraulic Hose Fittings:

1). BSP male, female fitting, straight & elbow, nuts, ferrules

2). JIC male, female fitting, straight & elbow, nuts, ferrules

3). NPT male, female fitting, straight & elbow, nuts, ferrules

4). ORFS male, female fitting, straight & elbow, nuts, ferrules

5). SAE male, female fitting, straight & elbow, nuts, ferrules

6.) Metric male, female fitting, straight & elbow, nuts, ferrules

7). Reusable fittings

8). One-piece fittings

2. hydraulic Adaptors:

1). BSP male, female adaptor, 3 ways tee 4 ways tee

2). JIC male, female adaptor, 3 ways tee 4 ways tee

3). NPT male, female adaptor, 3 ways tee 4 ways tee

4). ORFS male, female fitting, straight & elbow, nuts, ferrules

5). SAE male, female fitting, straight & elbow, nuts, ferrules

6.) Metric male, female fitting, straight & elbow, nuts, ferrules

3.Couplers and clamps:

European / American / Austraulia type camlock, pin-plug and clamps for large size hoses with NPT, BSP thread.

4.Stainless Steel (316SS / 304SS) & Brass & aluminum fittings:

NPT,JIC,BSP etc threaded male and female fittings & adaptors for low & high pressure

---
