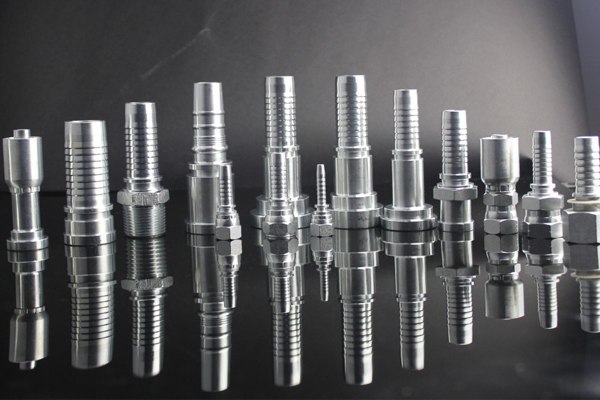

15613 fittings are NPT male interlock special for higher pressure demanded hydraulic hoses. 15613 hose fittings are available for hydraulic hoses from 1/2’’ to 2’’. For other sizes, please advise our sales which OEM service can be offered. Colors of 15613 fittings can be chosen from white, yellow, silver and colorful.
Details
Part no.: 15613(NPT Male Interlock)
Related items: 15611(fittings for one wire braided hydraulic hoses), 15612(fittings for one, two or four wire braided hydraulic hoses)
MOQ service: 200PCS each item
Delivery time: Less than 45 days for a big order
Currency: USD, EURO, RMB, others
Technical Data Table
Drawing
代号 PART NO. | 螺纹E THREAD E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
公称内径DN | 标 号 DASH | C | S | ||
15613-08-08 | Z1/2"X14 | 12 | 08 | 19 | 22 |
15613-12-10 | Z3/4"X14 | 16 | 10 | 19.5 | 30 |
15613-12-12 | Z3/4"X14 | 20 | 12 | 19.5 | 30 |
15613-16-16 | Z1"X11.5 | 25 | 16 | 24 | 36 |
15613-20-20 | Z1¼"X11.5 | 32 | 20 | 25 | 46 |
15613-24-24 | Z1½"X11.5 | 40 | 24 | 25 | 50 |
15613-32-32 | Z2"X11.5 | 50 | 32 | 28 | 65 |
