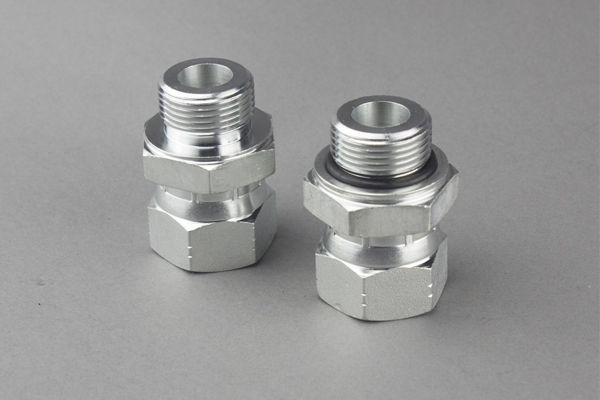

NPSM Pipe Swivel Fittings Stainless Steel Hydraulic Fittings

2NU pipe fittings are with NPT male to NPSM female 60 degrees cone thread type. Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When interested in our pipe fittings, consider the application, as this will affect material type, shape, size and required durability.

Details

Part no.: 2NU(NPT Male to NPSM Female 60°Cone)
Thread Types: NPT, NPSM, JIC, BSP, BSPT, Metric, JIS, etc.
Prices: YH fittings prices differ in types, quantities, material, etc.
Currency: USD, EURO, RMB, etc.
OEM service: available for drawings, samples or requirements presented.
Payment term: 30% TT in advance, 70% TT before shipment

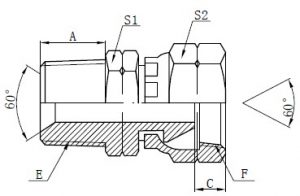

Technical Data Table

代号 PART NO.	螺纹THREAD		尺寸 DIMENSIONS
代号 PART NO.	E	F	A	C	S1	S2
2NU-02	Z1/8"X27	Z1/8"X27	10	5.5	12	14
2NU-02-04	Z1/8"X27	Z1/4"X18	10	5.5	12	19
2NU-04-02	Z1/4"X18	Z1/8"X27	14	5.5	14	14
2NU-04	Z1/4"X18	Z1/4"X18	14	5.5	14	19
2NU-04-06	Z1/4"X18	Z3/8"X18	14	6.5	17	22
2NU-04-08	Z1/4"X18	Z1/2"X14	14	8	19	27
2NU-06	Z3/8"X18	Z3/8"X18	14	6.5	19	22
2NU-06-04	Z3/8"X18	Z1/4"X18	14	5.5	19	19
2NU-06-08	Z3/8"X18	Z1/2"X14	14	8	19	27
2NU-08	Z1/2"X14	Z1/2"X14	19	8	22	27
2NU-08-04	Z1/2"X14	Z1/4"X18	19	5.5	22	19
2NU-08-06	Z1/2"X14	Z3/8"X18	19	6.5	22	22
2NU-12	Z3/4"X14	Z3/4"X14	19.5	11.5	27	32
2NU-12-06	Z3/4"X14	Z3/8"X18	19.5	6.5	27	22
2NU-12-08	Z3/4"X14	Z1/2"X14	19.5	8	27	27
2NU-12-16	Z3/4"X14	Z1"X11.5	19.5	11.5	36	41
2NU-16-12	Z1"X11.5	Z3/4"X14	24	11.5	36	32
2NU-16	Z1"X11.5	Z1"X11.5	24	11.5	36	41
2NU-16-20	Z1"X11.5	Z1.1/4"X11.5	24	12	41	50
2NU-20-16	Z1.1/4"X11.5	Z1"X11.5	25	11.5	46	41
2NU-20	Z1.1/4"X11.5	Z1.1/4"X11.5	25	12	46	50
2NU-20-24	Z1.1/4"X11.5	Z1.1/2"X11.5	25	13	41	55
2NU-24-20	Z1.1/2"X11.5	Z1.1/4"X11.5	25	12	46	50
2NU-24	Z1.1/2"X11.5	Z1.1/2"X11.5	25	13	50	55
2NU-32	Z2"X11.5	Z2"X11.5	29	16	65	70

Weld fittings is suitable for Oil, water, gas and other non corrosive or corrosive medium.For welding sealing pipe joint with pipe specifications is more flexible,with pipe welding,It has as the characteristics of connecting and good sealed performance.SO it is Widely used in Oil refining industry, chemical industry, light industry, textile, national defence, metallurgy, aviation, shipping,etc.It can also be applied to all kinds of mechanical engineering, machine tool equipment such as hydraulic transmission line.When the card sleeve pipe production still cannot satisfy the need and should be in place of the strong corrosion,It can be used by priority.At present our company’s production of stainless steel welded joints has been completely solve the problem of corrosion of welding position, in the most extreme conditions to work normally.

FAQ

1.Q: What’s your delivery time?
A: The time of delivery is 20 days.
2.Q: What’s the shipping port?
A: We ship the goods via Ningbo, Shanghai and the other main ports in China.
3.Q: What’s your payment term?
A: L/C, D/A, D/P, T/T.
4.Q: What’s the location of your company?
A: Zhejiang Province, China. If you want to have a visit, you will be very welcomed.
5.Q: How about your quality?
A: You can try a small order and you will have your judgement.
6.Q: How about the samples?
A: We can send you samples with little and reasonable charge.
7.Q: Are you manufactory?
A: Yes, we are a specialized manufacture of hose connector,instrument fitting connector,transition joints and so on.
