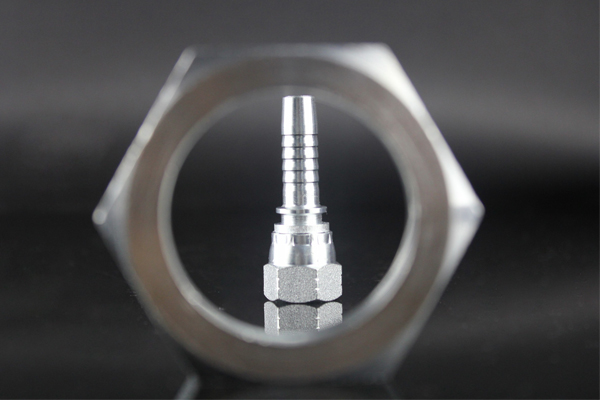

metric Multiseal Female hydraulic hose fittings 20111

Hose fitting 30111 are with metric female multi-seal thread type. 30111 fittings are non-crimped types which are widely used in hydraulic fluid connections. And if crimped type required, please refer to 20111 types or contact us for details. YH is a professional manufacturer and reliable supplier in hydraulic field for more than 8 years. If any similar products required, we believe YH will be your right choice

Details

---

Part no.: 30111(Metric Female Multi-seal)

Type: 20111(Crimped type); 30111(non-crimped type)

Stock condition: most items have been kept as stock products which can shorten the delivery time

Delivery time: 1 to 2 weeks

Package details: put in corrugated carton with nylon plastic then get together in multiple plywood case

Custom-orientated service: produce according to drawings or samples provided.

Technical Data Table

---

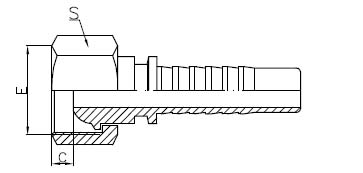

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH	C	S
30111-14-04	M14X1.5	6	04	4	19
30111-16-05	M16X1.5	8	05	4.5	22
30111-18-06	M18X1.5	10	06	4.5	24
30111-22-08	M22X1.5	12	08	5	27
30111-27-10	M27X1.5	16	10	4.5	32
30111-30-12	M30X1.5	20	12	4.5	36
30111-36-14	M36X2	22	14	5	41
30111-39-16	M39X2	25	16	5	46
30111-45-20	M45X2	32	20	5	55
30111-52-24	M52X2	40	24	5	60

FAQ
How to order ?

1.If you are interested in our products ,pls tell us which type and quantity you need
2.We will quote for you according to the requirement .
3.When you confirm ,perform invoice will be send you.
4.We will produce ASAP when received your deposit .
5.Deliver the products when finish producing .
What’s your Extra service ?

1.Sample order is available.
2.OEM accepted ,quantity according to the goods.
3.Print text or logo on the surface of products.
What”s your Guarantee ?

We promise use the best material and CNC machine
What’s your Payment terms?

1.We accept T/T, Western Union, L/C.
2.30% deposit and 70% before delivery .
3.We will deliver the products only when we received all payment.
What’s your Shipment terms?

1.Sample order via express.
2.Formal order via sea transportation.
3.We accept deliver products according to your requirement .

Quick Details

---

Type: Fittings
Model Number: 20111
Brand Name: YH
Place of Origin: Zhejiang, China (Mainland)
Certificate: CE/ISO
Standard: EATON Parker
Dimensions: 1/4"-2"
Thread: Metric Female
Color: Yellow,white Zinc Painting
Material: Carbon Steel or stainless steel
Name: Multiseal hydraulic fittings
Application: Construction or Hydraulic Machinery
Pressure: High Pressure

---
