30611 hose fittings are metric female 60 degrees cone which are non-crimped types. Crimped types 20611 are also offered in YH Hydraulic. Please refer to catalog attached which provides details of fittings sizes. 30611 fittings are popularly manufactured in our factory. We provide good quality, reasonable prices and fast delivery to customers.

Details

---

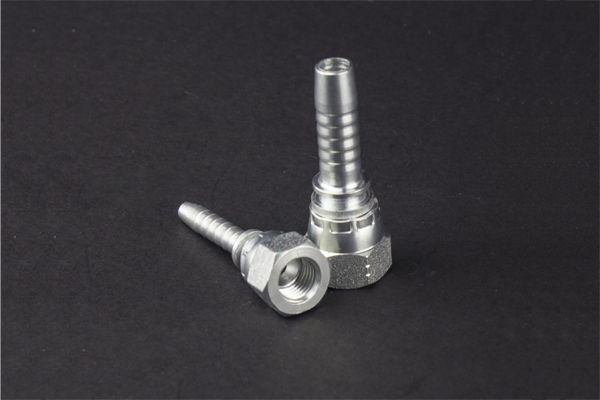

Part no.: 30611(Metric Female 60°Cone; Non-crimped type)

Hose type: one wire braided hydraulic hose such as R1AT, 1SN, etc. two wire braided hydraulic hose such as R2AT, R2A, 2SN, etc

Hose tail sizes: from 1/4’’ to 2’’ available

Ferrule types: 00210, 00110, 03310 available.

Stock condition: most sizes are kept in stock to shorten delivery time.

Technical Data Table

---

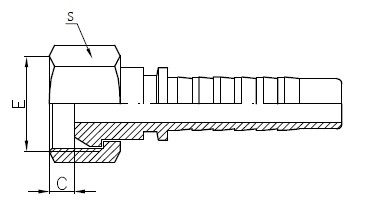

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH	C	S
30611-14-04	M14x1.5	6	04	5.5	17
30611-16-05	M16x1.5	8	05	5.5	19
30611-18-06	M18x1.5	10	06	6.5	22
30611-22-08	M22x1.5	12	08	7.5	27
30611-27-10	M27X1.5	16	10	9.5	30
30611-30-12	M30X1.5	20	12	8.5	32
30611-39-16	M39X1.5	25	16	10	46
30611-45-20	M45X1.5	32	20	11	55
30611-52-24	M52X1.5	40	24	12	60
30611-64-32	M64X1.5	50	32	15	75

Delivery Detail: 1-2weeks

Package Detail: Nylon plastic+corrugated carton +Multiple plywood case

Custom-orientated Service: produce according to your drawings or sample, offer custom-design

Our advantage:

1. High quality 2. Rich inventory  3. Prompt delivery 4. Reasonable price

Quick Details

---

Material: Carbon Steel, Carbon steel of hydraulic pipes and fittings
Technics: CNC Machining
Type: Union
Place of Origin: Zhejiang, China (Mainland)
Model Number: Customized
Brand Name: YH
Connection: Female
Shape: Reducing
Head Code: Hexagon
Product name: hydraulic pipes and fittings
Size: Customized Size
Standard: BSP,Metric, ORFS,JIC and so on
Certificate:ISO9001:2008
Color: White
Surface treatment: Galvanized
Thread: BSPP BSPT NPT
Application: Oil
Usage: Oil Gas Water Industrial

---
