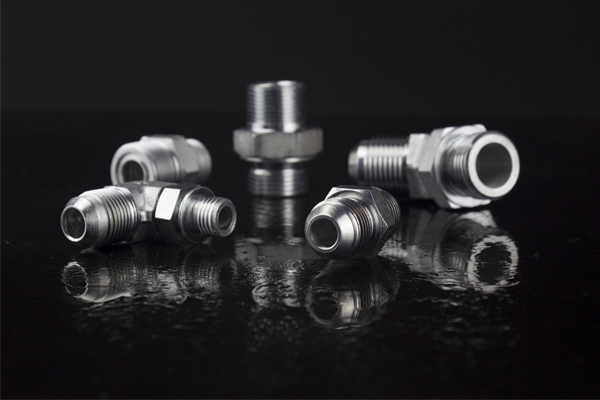

Male Thread Adapter Bsp Female Hydraulc Hose Fittings Black Equal Socket Malleable Iron Union Flat Seat

7B series fittings are BSP female thread types. Complete sizes from 02 to 32 are manufactured in YH Hydraulic to meet most hydraulic hoses demands. YH can produce other thread types such as metric, JIC, NPT, ORFS, JIS metric, BSPT, etc. Please email to us if you require any hydraulic products, you can find complete sizes and types in our factory.

Details

Part no.: 7B(BSP Female)
Sizes: From 02 to 32 are available to be produced in YH Hydraulic
Coating: yellow zinc-plated; white zinc-plated; chrome plated(Silver)
Standard: Eaton production standard; others are ok but need to present part no.
Custom-orientated: we can provide OEM service with samples or drawings provided.

Technical Data Table

代号 PART NO.	螺纹THREAD		尺寸 DIMENSIONS
代号 PART NO.	E	F	L	S1
7B-02	G1/8"X28	G1/8"X28	22	14
7B-04	G1/4"X19	G1/4"X19	24	19
7B-06	G3/8"X19	G3/8"X19	26	22
7B-08	G1/2"X14	G1/2"X14	32	27
7B-10	G5/8"X14	G5/8"X14	36	30
7B-12	G3/4"X14	G3/4"X14	36	32
7B-16	G1"X11	G1"X11	40	41
7B-20	G1.1/4"X11	G1.1/4"X11	44	50
7B-24	G1.1/2"X11	G1.1/2"X11	45	55
7B-32	G2"X11	G2"X11	54	70

Packaging& Shipping of black equal socket

Material	Malleable iron
Standard	Thread: ISO 7/1
	Dimension: ISO 49, DIN 2950,EN10242
Chemical property	(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property	Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure	2.5Mpa
Working pressure	1.6Mpa
Type	Beaded with ribs or banded with ribs
	Beaded without ribs or banded wihtout ribs
	Round/square
Surface	Galvanized/ no galvanized
Color	White/black
Model	Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection	Male, Female
Shape	Equal, Reducing
Certificate	BSI,ANAB,ISO9001,FM,UL
Application	Suitable for pipe connect of steam, air, gas, oil and so on
	Buyer’s drawings or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Double woven bags
	Or as buyer’s requirements
Delivery details	According to the quantities and specifications of each order
	Normal delivery time is from 30 to 45 days after receiving the deposit

FAQ

Production Capacity
Our factory could export 30000ton / year.

OEM service
We have professional technical research team. They have 20 years experience. If you have special requirements about the product, we could help you solve the problem.

Good Sales Service.
We provide after sales service for you.

Quick Delivery
Products in stock, it will take 15 days for delivery. Standard delivery time is about 30-45 days.

High work effective
We will always try our best to reply to reply you within 12 hours.
