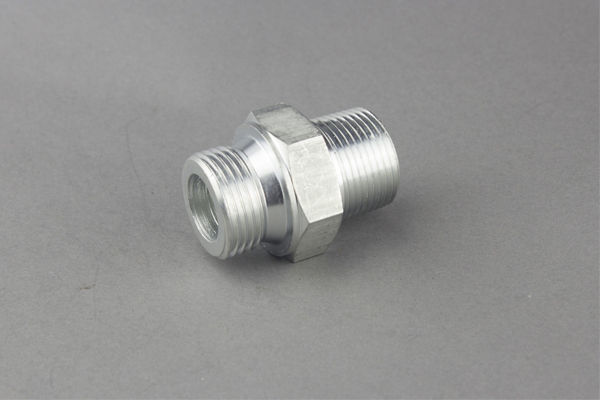

JIC SAE Flared Fitting Male SAE O-Ring Boss ORB Male Adapter SAE

1JO instead of JIC male 74 degrees cone to SAE o-ring boss are daily manufactured in our factory. Straight o-ring boss thread is based on SAE J514 standard. This straight thread connection uses the same threads as the JIC 37°. However the 37°flare has been removed and an o-ring has been added. When mated with a female o-ring boss port the o-ring is trapped in a special tapered counter to affect the seal.

Details

---

Part no.: 1JO(JIC Male 74°Cone to SAE O-ring Boss.
Sizes: from 1/4’’ to 2’’ are available. Please refer to technical data table.
MOQ: 300pcs for re-produced items. No limit for stock products.
Delivery time: less than 10 days if stock available; less than 45 days for an order if big or small.
Payment term: 30% TT in advance, 70% TT before shipment; Letter of Credit at sight; as invoice said.

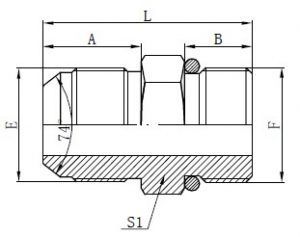

Technical Data Table

---
