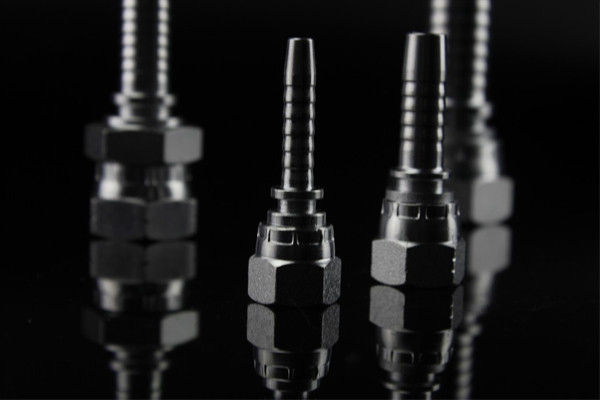

JIC-Female-Fittings

Part no. 26711 is a kind of JIC female with 74 degrees cone seat. Our part no.s are in line with Winner(Eaton as well) standard. For other brands like Manuli or Parker, we can figure out with our items to quote prices. Hose Fittings are made from carbon steel #45 or stainless steel if required. And sizes showed on technical data table are regularly produced.

Details

Material:Carbon Steel
Technics:Forged
Type:fittings
Place of Origin:China (Mainland)
Model Number:26711
Brand Name:YH
Connection:Female
Shape:Reducing
Head Code:Hexagon
Standard:EATON/Parker
Certificate:CE/ISO
Application:Oil Gas Water Industrial
Pressure:30-50Mpa
Size:1/4"-2"/Drawings
Thread:JIC 3/4*16
Quality control::100% inspection
Product name:Hydraulic fitting
Surface treatment:Yellow Zinc/Plating Zinc

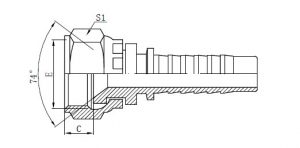

Technical Data Table

代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE尺  寸   DIMENSIONS
公称内径DN标 号 DASHCS1
26711-04-047/16"X206048.517
26711-05-041/2"X206049.519
26711-05-051/2"X208059.519
26711-06-049/16"X186041019
26711-06-059/16"X188051019
26711-06-069/16"X1810061019
26711-08-063/4"X1610061124
26711-08-083/4"X1612081124
26711-08-10 3/4"X1616101124
26711-10-06 7/8"X1410061127
26711-10-08 7/8"X1812081127
26711-10-10 7/8"X1816101127
26711-10-12 7/8"X1820121127
26711-12-081.1/16"X12120813.532
26711-12-101.1/16"X12161013.532
26711-12-121.1/16"X12201213.532
26711-12-161.1/16"X12251613.532
26711-14-121.3/16"X12201214.536
26711-16-121.5/16"X12201214.541
26711-16-141.5/16"X12221414.541
26711-16-161.5/16"X12251614.541
26711-16-201.5/16"X12322014.541
26711-20-161.5/8"X12251615.550
26711-20-201.5/8"X12322015.550
26711-24-201.7/8"X12322018.555
26711-24-241.7/8"X12402418.555
26711-32-322.1/2"X12503224.575


Our Services

Our services and certificates:
Our QC procedure:
As we had more than 5 professional and technical personal, they ensure 100% products checking.
1. Material checking: strictly control of material using, meet international requested standards;
2. semi-finished products inspection: product inspection before 100% finished ;
3. production line test: with work team or data engineer who will inspect matchines and lines at fixed period.
4. finished prodcuct inspection: quality and property test before products are plated zinc, packed and loaded.
Shipping & Service:
1. Orders will be dispatched around in 30 days after payment, depending on quantities.
2. We Always choose the most economical and reliable shipping company to make sure you receive the goods in time.
3. The tracking number will be provided to you once the consignment is shipped
4. Professional customer service to answer your questions or fix problems regarding your order.
