JIC 74 Degree male thread hose adapter 16711 with palstic cap hydraulic hsoe fittings

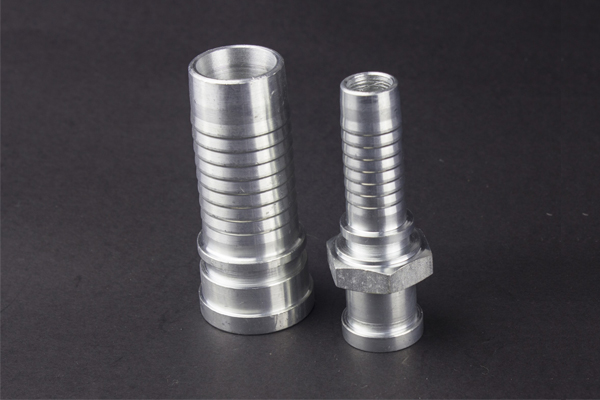

30711 hose fittings are GB metric female 74 degrees cone seat which are popular in machine inner connections. 30711 fitting sizes are suitable for one or two wire braided hydraulic hoses which sizes can be from 1/4’’ to 2’’. 30711 metric fittings are plated with zinc before package to protect from oxidation.

Details

---

Part no.: 30711(GB Metric Female 74°Cone Seat)

Ferrule types: 00110; 00210; 03310

Suitable hose sizes: from 1/4’’ to 2’’

OEM service: we are capable to design or produce with customers’ requirements, samples, or drawings.

Color options: white, yellow, nickel, colorful, etc.

Technical Data Table

---

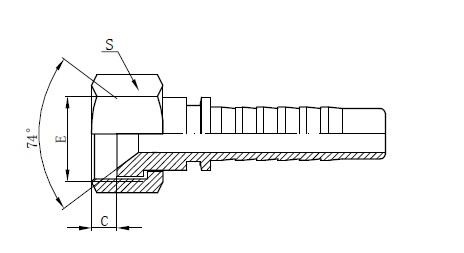

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH	C	S
30711-14-04	M14X1.5	6	04	8	17
30711-16-05	M16X1.5	8	05	8	19
30711-18-06	M18X1.5	10	06	8.5	22
30711-22-08	M22X1.5	12	08	10	27
30711-27-10	M27X1.5	16	10	10.5	32
30711-30-12	M30X1.5	20	12	11.5	36
30711-36-14	M36X2	22	14	13	41
30711-39-16	M39X2	25	16	13	46
30711-45-20	M45X2	32	20	15	55
30711-52-24	M52X2	40	24	17	60
30711-64-32	M64X2	50	32	23	75

Quick Details

---

Type: Fittings
Model Number: Hydraulic Hose Fitting
Brand Name: HY
Place of Origin: Zhejiang, China (Mainland)
Material: carbon steel
Color: sliver
Application: High Pressure Equipment
Certificate: ISO9001
OEM:Available
Free Sample:Available
Custom: Available
Name: male thread
Standard: JIC
Thread: JIC

---
