ISO Certificate DIN 4SH 4SP High Pressure Steel Wire Spiral Rubber Harga Hydraulic Hose

DIN EN856 4SP is including an inner tube of oil synthetic rubber, four spiral wire reinforcement, an oil and weather resistant synthetic rubber cover. Hoses are used for systems such as industrial machines, marine applications, tractors, excavators, presses, etc.

Details

Part no.: DIN EN856 4SP

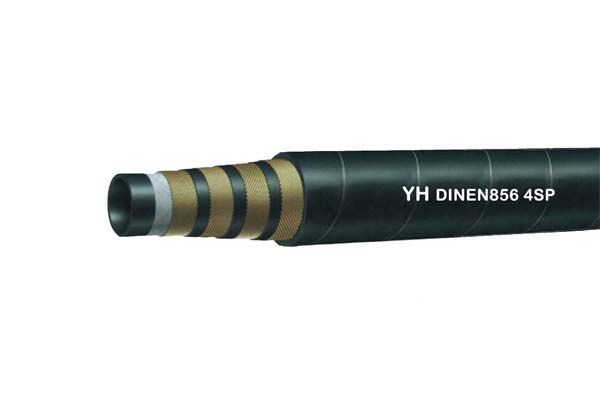

Construction: This hose consists of an inner tube of oil synthetic rubber, four spiral wire reinforcement, an oil and weather resistant synthetic rubber cover
Applications: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils, fuels lubrication emulsion hydrocarbons etc
Working Temperature: From --40℃ up to +100
Reference Specification: DIN EN856 4SP with descriptions
Outer Appearance: Black linen typ

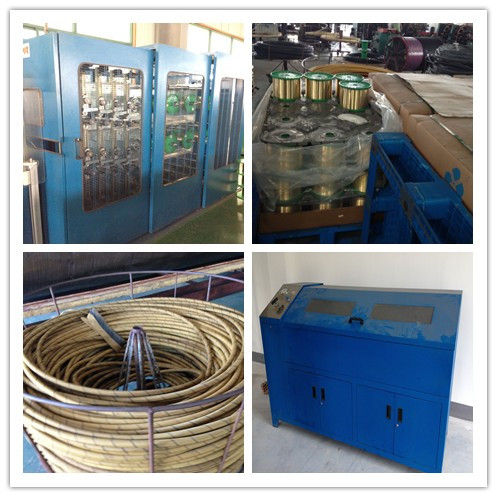

YH Hose Producing Details

Technical Data Table

名义直径 Nominal Diameter		内径 Inside diameter mm		钢丝层直径 Reinforcement Diameter mm		外径 Outside diameter mm		工作压力working pressure MPa	试验压力 Proof pressure MPa	爆破压力burst pressure MPa	最小弯曲 Min. bend Radius mm
Min	Max	Min	Max	Min	Max	Min	Max	Max	试验压力 Proof pressure MPa	Min	最小弯曲 Min. bend Radius mm
12	1/2	15.5	13.5	19.4	21.0	23.8	25.4	41.5	83.0	166.0	230
16	5/8	12.3	16.7	23.0	24.6	27.4	29.0	35.0	70.0	140.0	250
19	3/4	18.6	19.8	27.4	29.0	31.4	33.0	35.0	70.0	140.0	300
25	1	25.0	26.4	34.5	36.1	38.5	40.9	28.0	56.0	112.0	340
31	1.1/4	31.4	33.0	45.0	47.0	49.2	52.4	21.0	42.0	184.0	460
38	1.1/2	37.7	39.3	51,4	53.4	55.6	58.8	18.5	37.0	74.0	560
51	2	50.4	52.0	64.3	66.3	68.2	71.4	16.5	33.0	66.0	660
