Interlock Ferrule Hydraulic Hose Fitting Ferrule

Ferrule 00605 is interlock type for R13 strengthen hoses used in different hydraulic machines. Ferrules manufactured in YH factory are for high, medium and low-pressure hose assemblies. Our part no.s are based on Winner standard. For other standards, please contact our sales or download e-catalog

Details

---

Part no.: 00605(Interlock Ferrule For R13 Strengthen Hose)
Material: Carbon Steel #20; Stainless Steel; Copper; Aluminum
Features: Highly strict quality control; Rich investments of equipments; Good sealing and high-strength; high degrees of smooth surface
Application: Automobile, Engineering, Lathe, Metallurgy, Petroleum, Mining, Construction, Shipbuilding and many other fields related with hydraulic and its delivery system of fluid or gas.

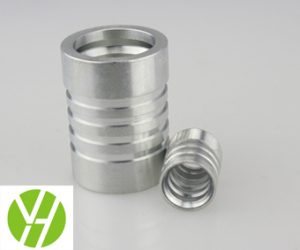

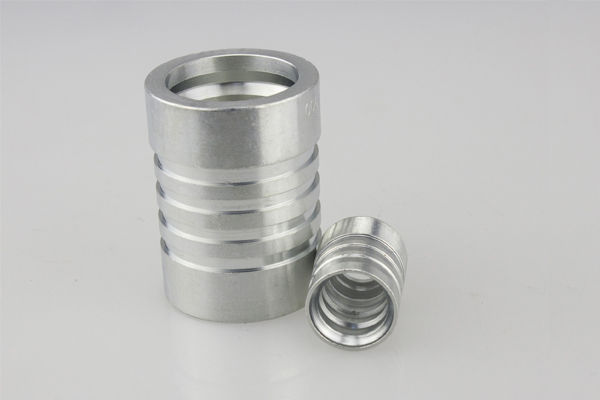

1. Pictures for Interlock Hydraulic Ferrules, hose ferrules, hose sleeves, hose collar

2. Different models of hose ferrules for your choice
Ferrules for SAE 100R1AT, DIN EN853 1SN: 00110 and 00100
Ferrules for SAE 100R2AT, DIN EN853 2SN: 00210 and 00200
Ferrules for SAE 100R1AT, DIN EN853 1SN, SAE 100R2AT, DIN EN853 2SN: 03310
Ferrules for DIN EN856 4SP, DIN EN865 4SH, SAE 100R12: 00400
Ferrules for SAE 100R7/R8 hoses: 00018
(See details on YH catalog)
3. Raw Material
20 carbon steel 316 stainless steel 304 stainless steel
4. Flow chat
YH Hydraulic has rich experiences in Interlock Hydraulic Ferrules production. We are able to supply different kinds of hydraulic hose ferrules, such as ferrules for R1AT 1SN hoses, ferrules for R2AT 2SN hoses, ferrules for 4SP 4SH R12 hoses, etc. Also we can produce sizes with customers’ requirements. It is a perfect idea to crimp good ferrules with fittings to make hose assemblies without leaking.
Raw material cutting--Raw material forging--CNC machines fashioning--Marking part no. on ferrule body--Galvanization--Packing
5. Coating Options
White zinc plated Yellow zinc plated Cr3 plated

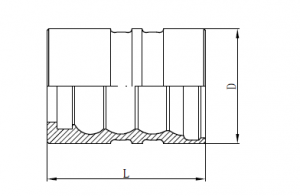

Technical Data Table

---
