Details

Material:Stainless Steel, SS316
Technics:Forged
Type:Elbow
Place of Origin:
Ningbo, China (Mainland)
Brand Name:YH
Connection:Male
Shape:Equal
Head Code:Hexagon
Port size:1/16 to 2 inch and 2 to 50mm.
Thread Type:NPT, ISO/BSP, SAE etc.

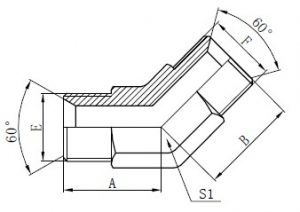

Technical Data Table

代号

PART NO.

螺纹THREAD尺寸 DIMENSIONS
 E FABS1
1B4-02-04G1/8"X28G1/4"X19222214
1B4-04G1/4"X19G1/4"X19222214
1B4-04-06G1/4"X19G3/8"X19222217
1B4-06G3/8"X19G3/8"X19222217
1B4-06-08G3/8"X19G1/2"X14272722
1B4-08G1/2"X14G1/2"X14272722
1B4-08-12G1/2"X14G3/4"X14333327
1B4-10G5/8"X14G5/8"X14272722
1B4-10-12G5/8"X14G3/4"X14333327
1B4-12G3/4"X14G3/4"X14333327
1B4-12-16G3/4"X14G1"X11373733
1B4-16G1"X11G1"X11373733
1B4-16-20G1"X11G1.1/4"X11404044
1B4-20G1.1/4"X11G1.1/4"X11404044
1B4-20-24G1.1/4"X11G1.1/2"X11474750
1B4-24G1.1/2"X11G1.1/2"X11474750
1B4-32G2"X11G2"X11555565

Hikelok Twin Ferrule Series Tube fittings
Twin ferrule fittings provide metal-to-metal seal connections, non-elastomeric seals for leak-free connections.
Hikelok twin ferrule fitting is designed to have a maximum allowable working pressure that is higher than that of any tubing.
Industry standard design for all instrumentation grade tubing.
Stainless steel tube harderness: the hardness of the tube shall be not greater than 85 HRB.
Available in sizes from 1/16 to 2 in and 2mm to 50mm.
Hikelok fittings materials include 316 stainless steel, brass, nickel-copper, Hastelloy C, 6Mo, Incoloy 625 and 825.
Hikelok special treated Back ferrule is to provide secure.
Sliver coated threads to reduce galling.
Leak-proof joints capable of satisfying high pressure vacuum and vibration applications.
