hydraulic swivel elbow pipe fittings

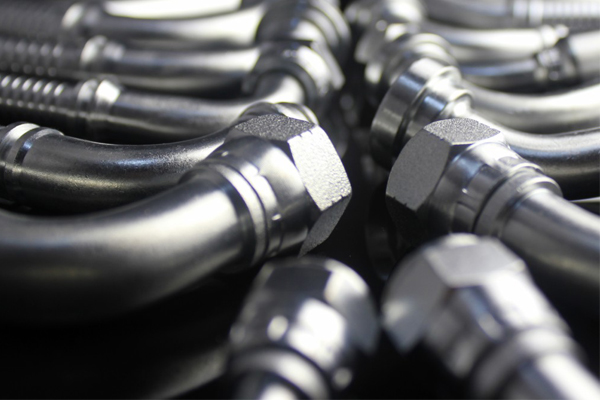

26743 fittings are 45 degrees JIC female 74 degrees cone seat for interlock. 26743 fittings are special for higher pressure demands from hydraulic hose connections. YH Hydraulic is committed to provide a package of service which surpasses customers’ expectations. Please come to contact us for any products requirements or suggestions.

Details

---

Part no.: 26743(45°JIC Female 74°Cone Seat For Interlock)

Material: Carbon Steel(20 carbon steel, 45 carbon steel); stainless steel(SS304, SS316)

Types: straight, 45 degrees elbow, 90 degrees elbow

MOQ policy: require 300pcs for each item

Payment term: 50% TT in advance, 50% TT before shipment; 30% TT in advance, 70% TT before shipment or against B/L.

Technical Data Table

---

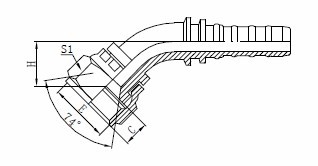

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH	C	S1	H
26743-08-08	3/4"X16	12	08	11	24	13.5
26743-12-12	1.1/16"X12	20	12	13.5	32	30.2
26743-16-16	1.5/16"X12	25	16	14.5	41	31.5
26743-20-20	1.5/8"X12	32	20	15.5	50	36.6
26743-24-24	1.7/8"X12	40	24	18.5	55	41.6
26743-32-32	2.1/2"X12	50	32	24.5	75	66.8

Hydraulic Fitting 45 DEGREE JIC FEMALE 74 DEGREE  CONE SEAT

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
		DN	DASH	C	S2	H
P26741-04-04	7/16"x20	6	04	9	15	18.1
-05-04	1/2"x20	6	04	9.5	17	18.5
-05-05	1/2"x20	8	05	9.5	17	19.3
-06-04	9/16"x18	6	04	10.5	19	18.5
-06-05	9/16"x18	8	05	10.5	19	19.3
-06-06	9/16"x18	10	06	10.5	19	20
-08-06	3/4"x16	10	06	11	24	21.4
-08-08	3/4"x16	12	08	11	24	23.5
-10-06	7/8"x14	10	06	14	27	21.8
-10-08	7/8"x14	12	08	14	27	24
-10-10	7/8"x14	16	10	14	27	25.3
-10-12	7/8"x14	20	12	14	27	28.9
-12-08	1.1/16"x12	12	08	15	32	25
-12-10	1.1/16"x12	16	10	15	32	26.4
-12-12	1.1/16"x12	20	12	15	32	30
-14-12	1.3/16"x12	20	12	15	36	30
-16-12	1.5/16"x12	20	12	16	41	30
-16-16	1.5/16"x12	25	16	16	41	31.5
-20-16	1.5/8"x12	25	16	17	50	32.5
-20-20	1.5/8"x12	32	20	17	50	36.6
-24-20	1.7/8"x12	32	20	20	55	36.9
-24-24	1.7/8"x12	40	24	20	55	41.6
-32-32	2.1/2"x12	50	32	24.5	75	49.5

Application

---

Automobile,engineering Machinery,Lathe,Machinery,Metallurgy,Petroleum,mine,construction,

chemical industry,shipbuilding,spacecraft,military,Textile,Ocean,Recreation,Electronics and many other

fields related with hydraulic and their delivery system of fluid and gas etc;

Quick Details

---

Delivery Detail: 1-2weeks

Package Detail: Nylon plastic+corrugated carton +Multiple plywood case

Custom-orientated Service: produce according to your drawings or sample, offer custom-design

Our advantage: 1. High quality 2. Rich inventory  3. Prompt delivery 4. Reasonable price
