Resistant-Hydraulic-Hose

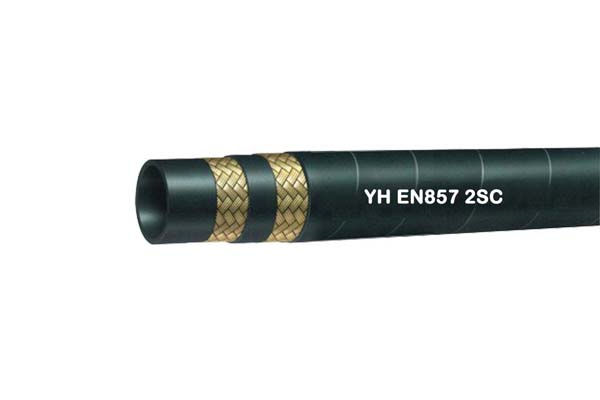

Wire braided hydraulic hose EN857 2SC consist of an inner tube of oil resistant synthetic rubber, a single steel wire braided reinforcement, and an oil and weather resistant synthetic rubber cover. Other items are involved in YH production for several years. We are not only qualified hydraulic hoses manufacturer, but also a reliable seller.

Details

Part no.: EN857 2SC
Applications: Low/medium pressure hydraulic system with mineral and vegetable oils, water, aqueous solution, air, inert gases.
Hose inside: substratum of synthetic rubber resistant to oils.
Reinforcement: 2 wire braided of high resistant steel
Covering: black synthetic rubber resistant to abrasion oils, fuels, ozone, atmospheric agents.
Working temperature: -40℃ up to +125℃(Max discontinuously)

Technical Data Table

名义直径

Nominal

Diameter

内径

Inside  diameter mm

钢丝层直径

Reinforcement

Diameter mm

外径

Outside diameter mm

工作压力working pressure MPa试验压力

Proof pressure

MPa

爆破压力burst pressure

MPa

最小弯曲

Min. bend

Radius

mm

MinMaxMinMaxMinMaxMaxMaxMin
61/46.16.910.611.714.240.080.0160.075
85/167.78.512.113.316.035.070.0140.085
103/89.310.114.415.618.333.066.0132.090
121/212.313.517.519.121.527.555.0110.0130
165/815.516.720.522.324.725.050.0100.0170
193/418.619.824.626.428.621.543.086.0200
25125.026.432.534.336.616.533.066.0250
