Hydraulic fittings and adapters 45 GB Metric Female 74 Cone Seat Hose Fittings Hydaulic Parts 20791

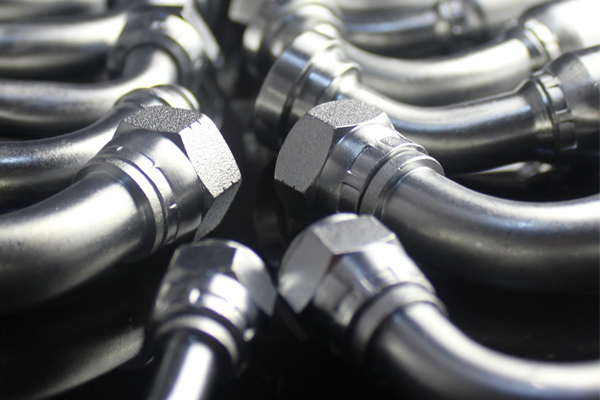

30442 fittings are 45 degrees metric female 24 degrees cone light type with o-ring crimped fittings for spiral hoses which standard is DIN3865. 30442 fittings are manufactured by CNC machines which can control the right dimensions and exact precision.

Details

---

Part no.: 30442(45°Metric Female 24°Cone L.T. With O-ring DIN3865 For Spiral Hose; Crimped Type)

Hose types: one or two wire braided hydraulic hoses like R1AT, R2AT, 1SN, 2SN, R17, etc.. Spiral hose like 4SP. 4SH, R12, etc.

Ferrule types: 00400 ferrules

MOQ: require 300pcs each item if few in stock

Color option: yellow, white or nickel(popular ones)

Technical Data Table

---

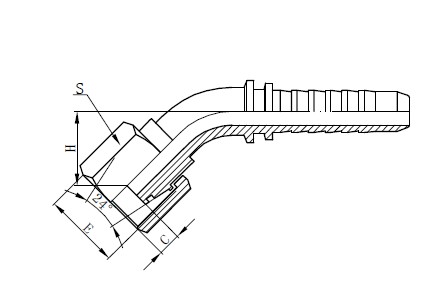

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		管子外径 TUBE.O.D	尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH		C	S	H
30442-22-08	M22X1.5	12	08	15	3	27	33.3
30442-27-10	M27X1.5	16	10	18	2.5	32	35
30442-30-12	M30X2	20	12	22	3.5	36	42
30442-36-14	M36X2	22	14	28	4.5	41	34
30442-36-16	M36X2	25	16	28	4.5	41	42.5
30442-45-20	M45X2	32	20	35	5	55	43.5
30442-52-24	M52X2	40	24	42	6	60	45.5

Quick Details

---

Type: Fittings, fitting

Model Number: 20791, male comprssion fittings
Brand Name: YH
Place of Origin: Zhejiang, China (Mainland)
Material: SS, STEEL
Processing: machining
color: White or yellow
Application:: oil, petroleum, water, chemical liquid
Origin: Fujian,China
Brand: YH
Hardness:Above 45RC
item names: 90 Degree Gb Metric Female 74 D

---
