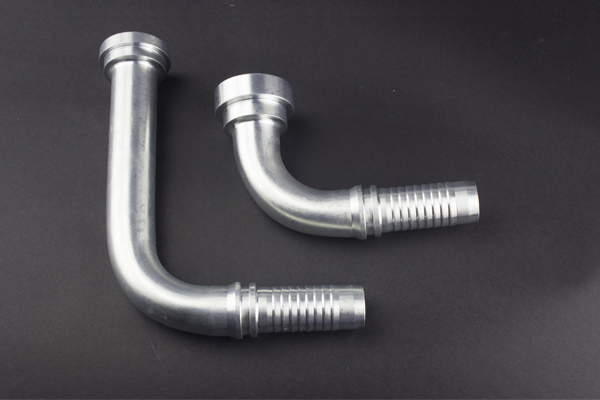

87692-16-12H series is elbow flange long drop fitting which height dimension is required by customers to its special application. Crimped with ferrules, this type is for one or two steel wire braided hoses to make hose assemblies. YH fittings can meet Winner production standard which is well-known in hydraulic field.

We specialized in exploiting, manufacturing and selling fluid flow systerm. Dingfeng products includes: All kinds of hydraulic hose fittings, adapters, hydraulic hose, high pressure hose assemblies and other metal parts, as well as the agent for related fluid joint products. We also provide OEM service.
These products are mainly used in aerospace, automotive, shipbuilding, medicine, chemicals, petroleum and other areas.

Details

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample. Please contact our sales person for the free sample.

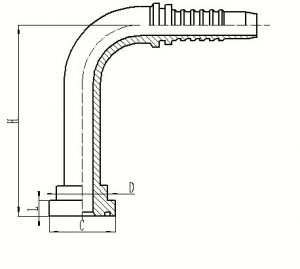

Technical Data Table

PART NO.FLANGE SIZEHOSE BOREDIMENSIONS
DNDASHCDLH
87692-16-12 H=1001"201247.6389.6100
87692-16-12 H=1501"201247.6389.6150

Advantage

1. We have acquired CE, CCC, ISO 9001: 2000, SAE and Quality Management System Certificate.
2. The product is easy for you to use, and you can use it freely.
3. The error is controled within 0.12mm.
4. We are looking forward to your inquiry about the details of our product and our company.

For Customer

Our Business
Maintenance of the industrial corporation by high-performance components and equipment for the hydraulic systems.
Our Purpose
We are interested in long-term cooperation and we try to become a reliable partner for any client. We guarantee quality of our production. The prosperity of our company is a success of our partners.

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 25-30 days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
