High reliability metric female crimping metric hydraulic hose fitting

24212 hose fittings are ORFS female flat seat for spiral hoses which are crimped types. Technical data presented below is not all for 24212 fittings. But please refer to 34212 which is only different from crimp type. 24212 fittings are available for one or two wire braided hydraulic hoses.

Details

---

Part no.: 24212(ORFS Female Flat Seat For Spiral Hose: Crimped Type)

Materials: available for carbon steel, stainless steel, brass, alloy steel, etc

Color options: white, yellow, nickel, colorful

Coating options: white zinc plated, yellow zinc plated, chrome plated, nickel plated, etc.

Custom-orientated service: available for fittings samples or drawings

Technical Data Table

---

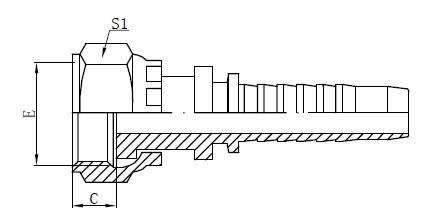

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH	C	S1
24212-08-08	13/16"X16	12	08	12	27
24212-20-20	1.11/16"X12	32	20	15.5	50

GB METRIC FEMALE 74°CONE SEAT	Thread E	Inner Diameter	Hose Bore	Subtense	Price(USD)
Part No.
20711-10-04 M10*1.0-1/4"HOSE	M10*1.0	9	6	14	1.10-1.30
20711-12-04 M12*1.5-1/4"HOSE	M12*1.5	10.5	6	17	1.20-1.40
20711-14-04 M14*1.5-1/4"HOSE	M14*1.5	12.5	6	19	1.20-1.40
20711-16-04 M16*1.5-1/4"HOSE	M16*1.5	14.5	6	22	2.30-2.50
20711-18-04 M18*1.5-1/4"HOSE	M18*1.5	16.5	6	24	2.30-2.50
20711-14-05 M14*1.5-5/16"HOSE	M14*1.5	12.5	8	19	2.00-2.20
20711-18-05T  M18*1.5-5/16"HOSE	M18*1.5	16.5	8	24	2.00-2.20
20711-18-06 M18*1.5-3/8"HOSE	M18*1.5	16.5	10	24	2.00-2.30
20711-20-06T  M20*1.5-3/8"HOSE	M20*1.5	18.5	10	24	2.80-3.00
20711-22-08 M22*1.5-1/2"HOSE	M22*1.5	20.5	13	27	3.00-3.20
20711-24-08T  M24*1.5-1/2"HOSE	M24*1.5	22.5	13	30	3.20-3.50
20712-24-10 M24*1.5-5/8"HOSE	M24*1.5	22.5	16	30	4.30-4.50
20712-27-10T  M27*1.5-5/8"HOSE	M27*1.5	25.5	16	32	5.00-5.50
20712-30-12 M30*1.5-3/4"HOSE	M30*1.5	28.5	19	36	5.80-6.00
20712-30-12 M30*2.0-3/4"HOSE	M30*2.0	28	19	36	5.80-6.00
20712-33-16 M33*1.5-1"HOSE	M33*1.5	31.5	25	41	7.50-8.00
20712-36-16T  M36*1.5-1"HOSE	M36*1.5	34.5	25	41	7.80-8.00
20712-36-16T  M36*2.0-1"HOSE	M36*2.0	34	25	41	7.80-8.00
20712-39-16T  M39*2.0-1"HOSE	M39*2.0	37	25	46	8.80-9.00
20712-42-16T  M42*1.5-1"HOSE	M42*1.5	40.5	25	50	10.50-11.50
20712-42-20T  M42*1.5-11/4"HOSE	M42*1.5	40.5	32	50	15.50-16.00
20712-42-20T  M42*2.0-11/4"HOSE	M42*2.0	40	32	50	15.50-16.00
20712-45-20T  M45*2.0-11/4"HOSE	M45*2.0	43	32	55	17.50-18.00

Quick Details

---

Material: Other, metal,Brass ,Carbon steel,stainless steel,brass or clear zinc plating
Technics: Forged
Type:Coupling
Place of Origin: Zhejiang, China (Mainland)
Model Number: METRIC FEMALE- 20711
Brand Name: YH
Connection: Other
Shape: Equal
Head Code:Hexagon
Surface: Yellow zinc plated
Color:Yellow
OEM:Available
Suitable Hose: R1/R1AT/R2/R2AT/4SP/4SH
Applicable models: Forklifts, bulldozers and

---
