Details

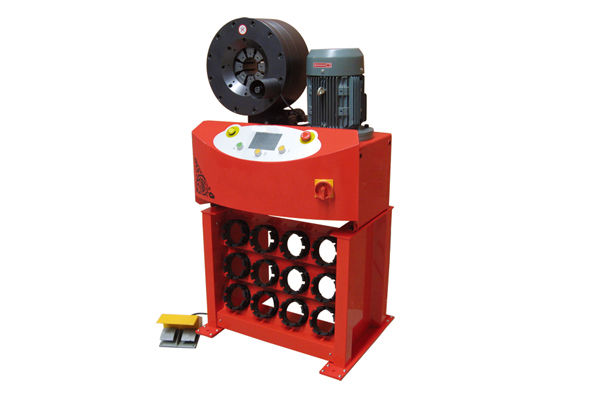

Part no.: YHHC-92C-O
Two-grade speed and no axial displacement
Enlarge opening, suitable for many kinds of elbow fitting
Suitable for quick change tool
Equipped with protection adapter which protect dies against the failure installation
Repeatability precision reaches to 0.01mm and venire regulation is accurate and steady for advanced control of crimping.
The machine YHHC-92C-O is safe and reliable for customers for using its excellent hydraulic and electrical element.

Technical Data Table

Crimper range1/8’’-2.1/2’’  4SP/--4’’
Standard voltage & motor380V/4KW
Opening without diesΦ160mm
Opening≥38mm
Optional voltage & motor220V/2.2KW
No. Of standard die set16 sets
Systematic pressure30MPa
Weight269KGS
Volume(L*W*H)720mm*530mm*820mm
