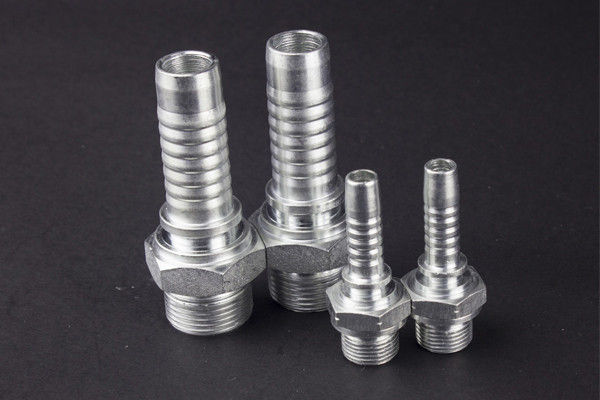

JIC-Male-Fittings

16711 37 degrees flare fittings perform well in severe applications where vibration, high pressure, and thermal shock exist. 16711 Sleeve insures tube alignment with the fitting body axis and minimizes mechanical strain on the tube. YH Hydraulic manufacture complete sizes of 16711 series fittings and offer lower prices to customers’ convenience.

Details

Part no.: 16711(JIC Male 74 Degrees Cone)
Material: Carbon steel; Stainless Steel; Brass; Monel
Production standard: based on Winner standard(Eaton); Offer OEM and ODM; Samples design and drawings produce welcome
Delivery: stock products delivered with 7 days; re-produced products according to the quantities, terms or special demands required
Currency: RMB; USD; EURO; others available

Technical Data Table

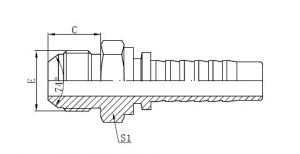

Drawing

代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE尺  寸   DIMENSIONS
公称内径DN标 号 DASHCS1
16711-04-047/16"X206041412
16711-05-041/2"X206041414
16711-05-051/2"X208051414
16711-06-049/16"X186041417
16711-06-059/16"X188051417
16711-06-069/16"X1810061417
16711-08-063/4"X16100616.722
16711-08-083/4"X16120816.722
16711-10-067/8"X14100619.524
16711-10-087/8"X14120819.524
16711-10-107/8"X18161019.524
16711-12-081.1/16"X1212082230
16711-12-101.1/16"X1216102230
16711-12-121.1/16"X1220122230
16711-12-161.1/16"X1225162232
16711-14-121.3/16"X12201222.532
16711-16-121.5/16"X1220122336
16711-16-161.5/16"X1225161236
16711-20-161.5/8"X12251624.546
16711-20-201.5/8"X12322024.546
16711-24-201.7/8"X12322027.550
16711-24-241.7/8"X12402427.550
16711-32-322.1/2"X1250323465


FAQ

Q1, Delivery Time
About 15-25 days.
Q2, About the logistics
Loading Port:Ningbo, or where you specify.
You can also choose your own shipping forwarder.
Q3, Packaging instruction
Sales packaging: 3-layer corrugated packaging.
Master carton packaging: 5-layer corrugated packaging.
Color box design according to your requirements.
Q4, Paymemt Term
You can pay for the order via: T/T, L/C, westunion, paypal.
Other payment terms are accepted.
Q5, Sample delivery
Samples are supplied free.
Delivery by DHL, TNT, UPS, FEDEX, EMS ,China Air Post.
