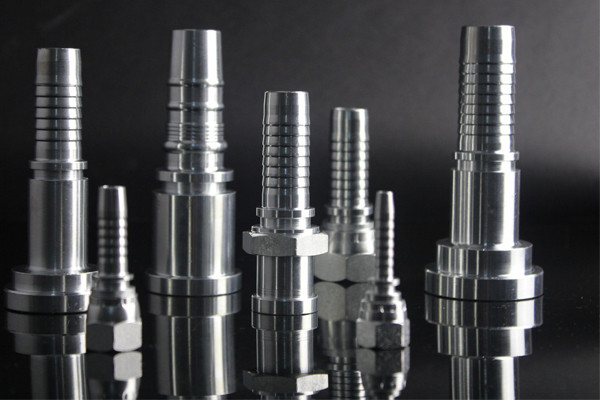

22111 BSP female multi-seal fittings are suitable for one or two steel wire braided hydraulic hoses such as R1AT, 1SN, R2AT, 2SN, etc. BSP fittings crimped with ferrules can be used in hose assembling directly. Details can be found below. But for different sizes requirements, please contact us for deeper discussion.

Details

Part no.: 22111(BSP Female Multi-seal)
Different types: YH provides a wide range of fittings supply. Please click “Brochure Download(PDF)” for other fittings
Material: Carbon steel(widely used); stainless steel(acceptable)
Delivery details: Less than 25 days for one order or as invoice said
Delivery port: The nearest port is Beilun port(in Ningbo)

Technical Data Table

代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE尺  寸   DIMENSIONS
公称内径DN标 号 DASHCS
22111-04-04G1/4"X19604419
22111-06-06G3/8"X191006622
22111-08-08G1/2"X141208727
22111-10-10G5/8"X141610730
22111-12-12G3/4"X142012832
22111-16-16G1"X1125167.541
22111-20-20G1¼"X113220750
22111-24-24G1½"X114024755
22111-32-32G2"X115032970

FAQ

1.What after-sales service can we offer?
We keep our quality from the material selection to the product itself.Any quality problem we are responsible for it.
Offer technical support.Once found quality problem,both side negotiate until client satisfy.
2.How to get free samples?
Send your address,your telephone number,post code,and express account number to our mail box,and told us
which samples you need and samples specification.
3.Can you produce products with my own brand?
Yes,we can offer OEM services.
4.What’s your usual payment term for orders?
T/T 30% as the deposit,and 70% balance paid against copy of B/L.Or any payment term to discuss.
