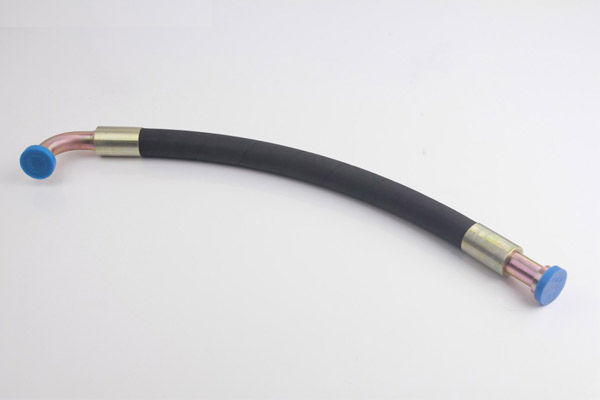

High-Pressure-Hose-Assemblies

Details

Part no.: YH-4SH-87312(Hose: DIN EN856 4SH; Fitting: SAE Flange 3000PSI For Spiral Hose)
Ferrule type: 00400 ferrule(ferrule for four wire steel braided hose)
Application: high pressure hydraulic application including mobile, machine tool and agricultural application, using petroleum or water based hydraulic fluids.
Suitable Temp.: -40℃ to +100℃(Max: +120℃)
Delivery time: less than 10 days for one order

Technical Data Table

名义直径

Nominal

Diameter

内径

Inside  diameter mm

钢丝层直径

Reinforcement

Diameter mm

外径

Outside diameter mm

工作压力working pressure MPa试验压力

Proof pressure

MPa

爆破压力burst pressure

MPa

最小弯曲

Min. bend

Radius

mm

MinMaxMinMaxMinMaxMinMaxMaxMin
193/418.619.827.629.231.433.042.084.0168.0280
25125.026.434.436.037.539.938.076.0152.0340
311.1/431.433.040.942.943.947.132.565.0130.0460
381.1/237.739.347.849.851.955.129.058.0116.0560
51250.452.062.264.266.569.725.050.0100.0700

Packaging & Shipping

1. Quality test: 100% pressure test and leakage test before packing.
2. Packing details: standard export packing or according to customer's special requirements.
3. Delivery Detail:Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Our Services

1. We can do the designs according to customers' requirements.
2. We can open customers' own mold as per their requirements.
3. We can offer you a good after-sell service.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
