High Pressure Hydraulic Fluid Coupling

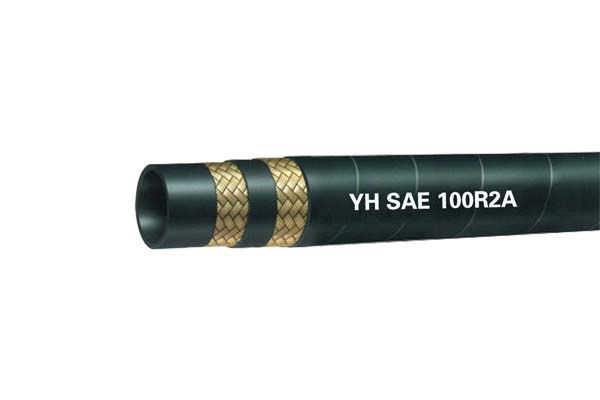

Item SAE 100R2A is two steel wire braided hoses. The basic hydraulic hose construction includes three layers which help maintain a consistent and reliable flow of liquid while protecting overall assemblies from breaking down as a result of wear or abrasion. Thus good quality hoses can make machines function well.

Details

Part no.: SAE 100R2A
Hose compatibility liquids: petroleum oil; synthetic oil; liquid with a high-water content
Involved items: SAE 100R1AT; SAE 100R1A; SAE 100R1AT; DIN EN853 1SN; DIN EN853 2SN; SAE 100R2AT; DIN EN856 4SP; DIN EN865 4SH; etc
Stock ability: most items with large quantities are in YH stock
Delivery time: Within 10 days
Delivery term: FOB(Ningbo); other shipping terms are available
Payment term: TT; L/C at sight

Technical Data Table

名义直径 Nominal Diameter		内径 Inside diameter mm		钢丝层直径 Reinforcement Diameter mm		外径 Outside diameter mm		工作压力working pressure MPa	试验压力 Proof pressure MPa	爆破压力burst pressure MPa	最小弯曲 Min. bend Radius mm
Min	Max	Min	Max	Min	Max	Min	Max	Max	试验压力 Proof pressure MPa	min	最小弯曲 Min. bend Radius mm
5	3/16	4.6	5.4	10.6	11.7	15.1	16.7	35.0	70.0	140.0	90
6.3	1/4	6.2	7.0	12.1	13.3	16.7	18.3	35.0	70.0	140.0	100
8	5/16	7.7	8.5	13.7	14.9	18.3	19.8	29.7	59.4	118.8	115
10	3/8	9.3	10.1	16.1	17.3	20.6	22.2	28.0	56.0	112.0	125
12.5	1/2	15.5	13.5	19.0	20.6	23.8	25.4	24.5	49.0	98.0	180
16	5/8	12.3	16.7	22.2	23.8	27.0	28.6	19.2	38.4	76.8	205
19	3/4	18.6	19.8	26.2	27.8	31.0	32.5	15.7	31.4	62.8	240
25	1	25.0	26.4	34.1	35.7	38.5	40.9	14.0	28.0	56.0	300
31.5	1.1/4	31.4	33.0	43.2	45.6	49.2	52.4	11.3	22.6	45.2	420
38	1.1/2	37.7	39.3	49.6	52.0	55.6	58.7	8.7	17.4	34.8	500
51	2	50.4	52.0	62.3	64.7	68.3	71.4	7.8	15.5	31.0	630
