High Pressure 5 Inch DN125 Concrete Pump Rubber End Hose

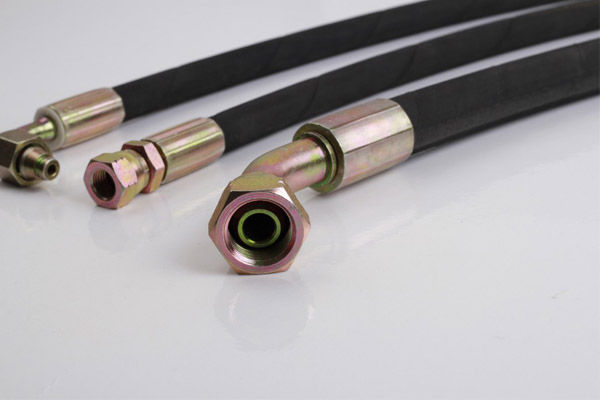

YH-R2A-30111 hose assemblies are composed with SAE 100R2A, metric female multi-seal fittings and related ferrules. Hose assemblies are sold with high tightness, long service life and good oil resistance. We are providing different types of hose assemblies for your choose. Please contact us with detailed enquiries

Details

Part no.: YH-R2A-30111(Hose: SAE 100R2A; Fitting: Metric Female Multi-seal)
Ferrule type: 00210(ferrule for two wire braided hose); 03310(ferrule for one or two wire braided hose)
YH assembly features: high tightness, long service life, good oil resistance, good surface, reasonable selling prices, etc
The working temperature can range from -40℃ to +100℃
They can be appropriate for hydraulic, oil-carrying, or lubricating parts of all kinds of mechanical equipments.

Technical Data Table

名义直径 Nominal Diameter		内径 Inside diameter mm		钢丝层直径 Reinforcement Diameter mm		外径 Outside diameter mm		工作压力working pressure MPa	试验压力 Proof pressure MPa	爆破压力burst pressure MPa	最小弯曲 Min. bend Radius mm
Min	Max	Min	Max	Min	Max	Min	Max	Max	试验压力 Proof pressure MPa	min	最小弯曲 Min. bend Radius mm
5	3/16	4.6	5.4	10.6	11.7	15.1	16.7	35.0	70.0	140.0	90
6.3	1/4	6.2	7.0	12.1	13.3	16.7	18.3	35.0	70.0	140.0	100
8	5/16	7.7	8.5	13.7	14.9	18.3	19.8	29.7	59.4	118.8	115
10	3/8	9.3	10.1	16.1	17.3	20.6	22.2	28.0	56.0	112.0	125
12.5	1/2	15.5	13.5	19.0	20.6	23.8	25.4	24.5	49.0	98.0	180
16	5/8	12.3	16.7	22.2	23.8	27.0	28.6	19.2	38.4	76.8	205
19	3/4	18.6	19.8	26.2	27.8	31.0	32.5	15.7	31.4	62.8	240
25	1	25.0	26.4	34.1	35.7	38.5	40.9	14.0	28.0	56.0	300
31.5	1.1/4	31.4	33.0	43.2	45.6	49.2	52.4	11.3	22.6	45.2	420
38	1.1/2	37.7	39.3	49.6	52.0	55.6	58.7	8.7	17.4	34.8	500
51	2	50.4	52.0	62.3	64.7	68.3	71.4	7.8	15.5	31.0	630

Fitting Technical Data

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺寸 DIMENSIONS
代号 PART NO.	螺纹E THREAD E	公称内径DN	标号 DASH	C	S
30111-14-04	M14X1.5	6	04	4	19
30111-16-05	M16X1.5	8	05	4.5	22
30111-18-06	M18X1.5	10	06	4.5	24
30111-22-08	M22X1.5	12	08	5	27
30111-27-10	M27X1.5	16	10	4.5	32
30111-30-12	M30X1.5	20	12	4.5	36
30111-36-14	M36X2	22	14	5	41
30111-39-16	M39X2	25	16	5	46
30111-45-20	M45X2	32	20	5	55
30111-52-24	M52X2	40	24	5	60
