Good Price High Pressure Steel Wire Braided Hose

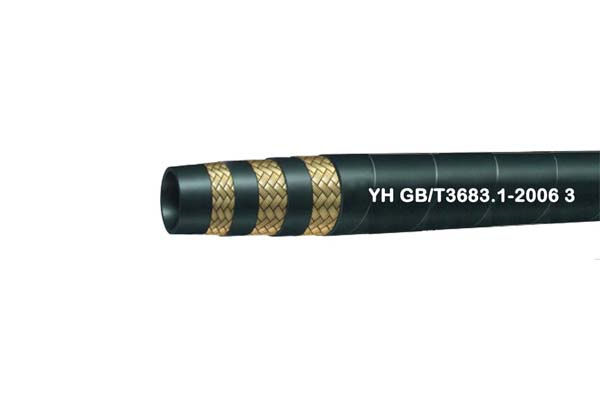

Rubber hose GB/T3683.1-2006 3 is type of three steel wire braided hydraulic hose. Complete sizes are produced in YH Hydraulic from 6-51. Working pressure showed in technical data meet popular international standards. YH promise customers best quality hoses and reasonable prices.

Details

Part no.: GB/T3683.1-2006 3
Brand: YH(customers markings are available)
Surface: wrapped surface
Delivery time: with 7 days after receiving the deposit(Standard items)
Stock: many items available.

Technical Data Table

型号 TYPE	公称内径 I.D.	参考外径 O.D.	钢丝层外径 Reinforcement diameter	工作压力 W.P.	试验压力 P.P.	最小爆破压力 B.P.	最小弯曲半径 Min. bend radius
型号 TYPE	mm	mm	mm	MPa	MPa	MPa	mm
6-3	6.3	19	15.0±0.5	45	90	180	100
8-3	8	21	17.0±0.5	40	80	160	115
10-3	10	23	19.0±0.5	35	70	140	128
13-3	12.5	26	22.9±0.6	30	60	120	180
16-3	16	29	26.0±0.6	23	46	92	205
9-3	19	33	28.8±0.6	18	36	72	240
22-3	22	36	32.0±0.8	16	32	64	280
25-3	25	40	35.0±0.8	16	32	64	300
32-3	31.5	47	42.5±0.8	12	24	48	420
38-3	38	53	48.5±0.8	10	20	40	500
51-3	51	66	61.5±0.8	9	18	36	630
