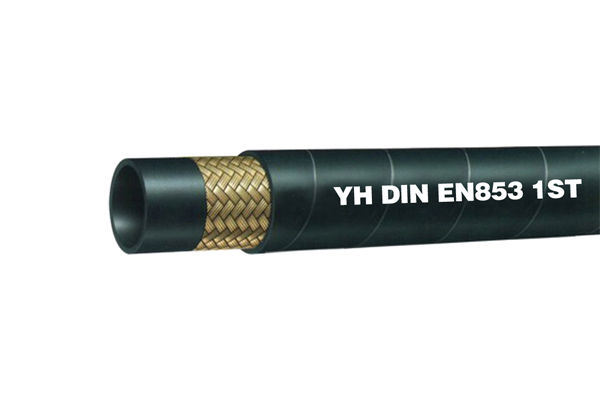

DIN EN853 1ST, with wire braided, are mainly used in mine and oilfield exploitation, suitable for the construction, lifting transport, forging metallurgy, mining equipment, ships, injection molding machinery, etc. YH provide complete types of hydraulic hoses which can meet different industrial demands. And we have kept a large stock for most items which can shorten the delivery time.
Details
Part no.: DIN EN853 1ST
Certificate: ISO9001:2008
Advantage: Large stocks and timely delivery; Professional production ability; Good after-sales service
Application: Mine and oilfield exploitation, construction, lifting transport, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery, machine tools, kinds of industrial sectors mechanization and automation of hydraulic transmission system
Payment term: 100% TT in advance; 30 % TT in advance, 70% TT before shipment; others
Technical Data Table
| 名义直径 Nominal Diameter | 内径 Inside diameter mm | 钢丝层直径 Reinforcement Diameter mm | 外径 Outside diameter mm | 工作压力working pressure MPa | 试验压力 Proof pressure MPa | 爆破压力burst pressure MPa | 最小弯曲 Min. bend Radius mm | ||||
| Min | Max | Min | Max | Min | Max | Min | Max | Max | Min | ||
| 5 | 3/16 | 4.6 | 5.4 | 9.0 | 10.0 | 11.9 | 13.5 | 25.0 | 50.0 | 100.0 | 90 |
| 6.3 | 1/4 | 6.2 | 7.0 | 10.6 | 11.6 | 15.1 | 16.7 | 22.5 | 45.0 | 90.0 | 100 |
| 8 | 5/16 | 7.7 | 8.5 | 12.1 | 13.3 | 16.7 | 18.3 | 21.5 | 43.0 | 85.0 | 115 |
| 10 | 3/8 | 9.3 | 10.1 | 14.5 | 15.7 | 19.0 | 20.6 | 18.0 | 36.0 | 72.0 | 125 |
| 12.5 | 1/2 | 15.5 | 13.5 | 17.5 | 19.1 | 22.2 | 23.8 | 16.0 | 32.0 | 64.0 | 180 |
| 16 | 5/8 | 12.3 | 16.7 | 20.6 | 22.2 | 25.4 | 27.0 | 13.0 | 26.0 | 52.0 | 205 |
| 19 | 3/4 | 18.6 | 19.8 | 24.6 | 26.2 | 29.4 | 31.0 | 10.5 | 21.0 | 42.0 | 240 |
| 25 | 1 | 25.0 | 26.4 | 32.5 | 34.1 | 37.1 | 39.1 | 8.8 | 17.5 | 35.0 | 300 |
| 31.5 | 1.1/4 | 31.4 | 33.0 | 39.3 | 41.7 | 44.4 | 47.6 | 6.3 | 12.5 | 25.0s | 420 |
| 38 | 1.1/2 | 37.7 | 39.3 | 45.6 | 48.0 | 50.8 | 54.0 | 5.0 | 10.0 | 20.0 | 500 |
| 51 | 2 | 50.4 | 52.0 | 58.7 | 61.7 | 65.1 | 68.3 | 4.0 | 8.0 | 16.0 | 630 |
