Factory sale Standard fittings Japanese Industrial hydraulic fittings

30241 hose fittings are suitable for hose sizes from 3/8’’ to 2’’. 30241 fittings are 45 degrees GB metric female flat seat types which are popularly produced and sold in YH Hydraulic. Complete thread types are included in our daily production. Please visit our website then email to us with your detailed product requirements.

Details

---

Part no.: 30241(45°GB Metric Female Flat Seat)

Material: carbon steel, stainless steel, brass

Surface treatment: zinc plated, chrome plated, nickel plated, etc

After sales service: we guarantee the good quality provided; available

Certificate: ISO9001:2008

Technical Data Table

---

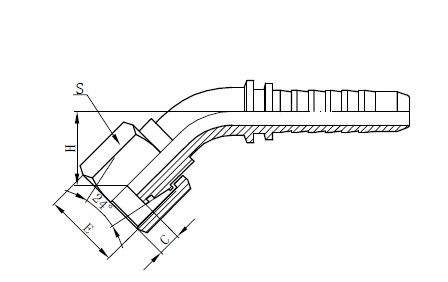

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸 DIMENSIONS
		公称内径DN	标 号 DASH	C	S	H
30241-18-06	M18X1.5	10	06	8.5	22	13.5
30241-22-08	M22X1.5	12	08	10	27	13.5
30241-27-10	M27X1.5	16	10	10.5	32	26
30241-30-12	M30X1.5	20	12	11.5	36	30.1
30241-36-14	M36X2	22	14	13	41	27.2
30241-36-16	M36X2	25	16	13	41	30.5
30241-39-16	M39X2	25	16	13	46	30
30241-45-20	M45X2	32	20	15	55	34.8
30241-52-24	M52X2	40	24	17	60	38
30241-64-32	M64X2	50	32	23	75	46.9

Factory sale Standard fittings Japanese Industrial high Quality Japanese Fittings Hydraulic Fittingss
Product Feature

Convenient one-touch fittings provide instant tubing connections
Plug connection: threaded and hose barb ends available
Material type :Steel , Zinc Alloy , aluminium , Brass
Brass with good nice nickel plated
Each and every pcs was tested at 10kgs/cm2

---
