Factory Price Standard Carbon Steel Hydraulic Adapter Metric Thread Fittings With Captive Seal

1DB-WD series are metric male 24 degrees heavy type and BSP with captive seal. Sizes from 04 to 24 are popularly produced and sold in YH Hydraulic. Items come in material of mild steel and stainless steel mostly. High precision is controlled by CNC manufacturing. As a reliable supplier, we not only provide quality products, but also nice service for creating a good business cooperation.

Details

Part no.: 1DB-WD(Metric Male 24°Heavy Type; BSP With Captive Seal)
Material: Fitting part: mild steel; Captive seal: rubber
Type: support selling complete set with cutting rings and nuts
MOQ policy: 300PCS to 500PCS each item
Shipping term: FOB(Ningbo) or CIF(customer’s port) acceptable; shipping data is less than 30 days for one order(reproduced items)

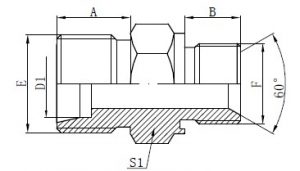

Technical Data Table

代号 PART NO.	螺纹THREAD		管子外径	尺寸 DIMENSIONS
代号 PART NO.	E	F	TUBE O.D. D1	A	B	S1
1DB-14-04WD	M14X1.5	G1/4"X19	6	13	12	19
1DB-16-04WD	M16X1.5	G1/4"X19	8	13.5	12	19
1DB-16-06WD	M16X1.5	G3/8"X19	8	13.5	13.5	22
1DB-18-04WD	M18X1.5	G1/4"X19	10	13.5	12	19
1DB-18-06WD	M18X1.5	G3/8"X19	10	13.5	13.5	22
1DB-18-08WD	M18X1.5	G1/2"X14	10	13.5	16	27
1DB-20-04WD	M20X1.5	G1/4"X19	12	13.5	12	22
1DB-20-06WD	M20X1.5	G3/8"X19	12	13.5	13.5	22
1DB-20-08WD	M20X1.5	G1/2"X14	12	13.5	16	27
1DB-22-08WD	M22X1.5	G1/2"X14	14	14	16	27
1DB-24-06WD	M24X1.5	G3/8"X19	16	14	13.5	27
1DB-24-08WD	M24X1.5	G1/2"X14	16	14	16	27
1DB-24-12WD	M24X1.5	G3/4"X14	16	14	18.5	32
1DB-30-12WD	M30X2	G3/4"X14	20	18	18.5	32
1DB-42-20WD	M42X2	G1.1/4"X11	30	20	20.5	50
1DB-52-24WD	M52X2	G1.1/2"X11	38	22	23	55

metric thread fitting with captive seal
1) Material: Carbon steel, Stainless steel
2) Finish: yellow Zinc plated, White Zinc Plated
3) Standards: EATON Parker standard
4) Certification: ISO9001, CE.
5)Color:Nickel white or Zinc plating
6)Surface:Cr6free zinc, nickel, chrome, painting, hot galvanizing
7)Standard:Eaton / Parker standard
8)Grade:Carbon Steel 45#,Stainless Steel,SUS201,SUS304,SUS316.
9)Connection:Male or Female
10)Thread:BSP BSPT METRIC JIC ORFS

Used:Heavy hydraulic equipment, Precision parts, machinery accessories, truck and auto parts, industrial parts, mining accessories, off-shore applicances, agricultral facilities and construction material etc.

Our service

♦ OEM Manufacturing welcome: Product, Package
♦ We provide sample orders
♦ We will reply you for your inquiry in 24 hours
♦ After sending, we will track the products for you once every two days, until you get the products
♦ When you get the goods, have any questions, we will provide the best quality service

Packaging

♦ Packages we are now using, high quality OPP bags+Carton. (OEM is welcomed )

Shipping

♦ Pre-order negotiation, including packages, pictures of products
♦ PI confirmation, including specifications, prices, payment account, shipping cost & agent etc
♦ Payment confirmation
♦ Shipping arrangement, packages will be under strict inspection
♦ Shippments will be made officially, and customers be informed
