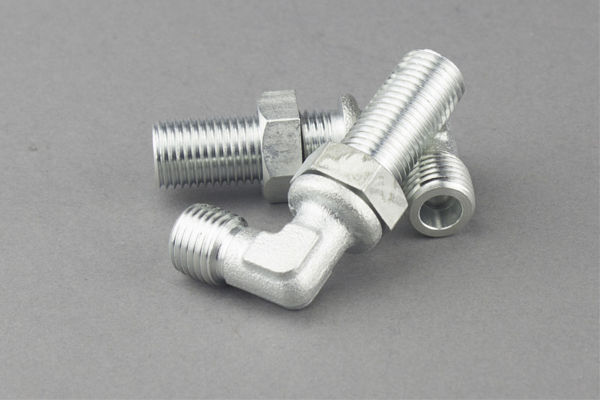

Factory Price Hot Sale Metric Bulkhead Connectors

6C series are metric male 24 degrees light type bulkhead adapter fittings. Compared with 6C types, 6D series are heavy types. And they all can be found in YH Hydraulic. Our adapter fittings are forged with material of mild steel. But we can offer other material products to customers’ requirements.

Details

---

Part no.: 6C(Metric Male 24°Light Type Bulkhead)
Size range: from M12 to M52; For bigger or smaller ones, please advise our sales.
Type: With or without cutting ring and nuts are available for selling.
Quality: Highly precision manufactured; good packed; best quality of material(carbon steel)
Standard: Winner(same as Eaton); other standard products need part no.s to check out with ours.
Package: cartons with plastic cover; wooden case with plastic cover

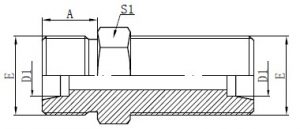

Technical Data Table

---

Product Overviews

---

1) FERRULE
FERRULE for SAE100R1AT/EN 853 1SN HOSE
FERRULE for SAE100R2A/EN853 2SN HOSE
FERRULE for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC
FERRULE for 4SP, 4SH/10-16, R12/06-16 HOSE
FERRULE for 4SH, R12/32 HOSE
2) CRIMPED METRIC FITTINGS
Metric Flat Seal Fittings Metric Multiseal Fittings
Metric 60°Cone Seal Fittings Metric 74°Cone Seal Fittings
Metric 24°Cone O-RING Seal L..T. Fittings Metric 24°Cone O-RING Seal H.T. Fittings
Metric Standpipe Straight Fittings JIS Metric 60°Cone Seal Fittings
3) CRIMPED BRITISH FITTINGS
BSP O-RING Seal Fittings BSP Flat Seal Fittings
BSP Multiseal Fittings BSP 60°Cone Seal Fittings
BSPT Fittings JIS BSP 60°Cone Seal Fittings
4) CRIMPED AMERICAN FITTINGS
SAE O-RING Seal Fittings ORFS Flat Seal Fittings
NPSM 60°Cone Seal Fittings JIC 74°Cone Seal Fittings
NPT Fittings SAE Flange L.T. Fittings SAE Flange H.T. Fittings
5) STAPLELOK FITTINGS
Banjo double connection interlock hose fittings
6) ADAPTERS
METRIC THREAD O-RING SEAL FITTINGS
METRIC THREAD BITE TYPE TUBE FITTINGS
METRIC THREAD 74° CONE THREAD TUBE FITTINGS
JAPANESE METRIC THREAD 60° CONE FITTINGS
JAPANESE BSP THREAD 60° CONE FITTINGS
BSP THREAD 60° CONE FITTINGS
BSPT THREAD FITTINGS
NPT THREAD FITTINGS
JIC 74° CONE FLARED TUBE FITTINGS
ORFS FITTINGS
