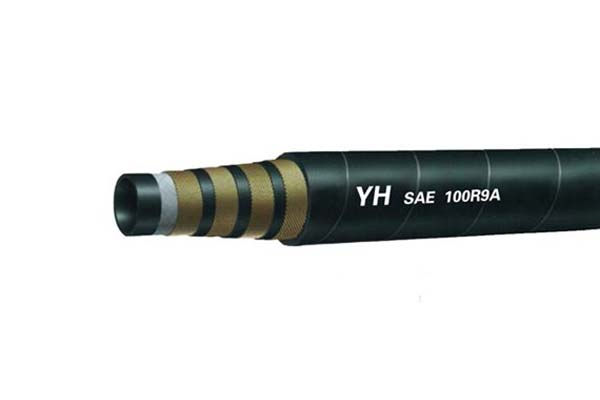

Factory Direct Supplying High Pressure R9A Hydraulic Hose

SAE 100R9A is a kind of spiral hydraulic hoses. YH provides a comprehensive line of hydraulic hoses production. Complete sizes are involved in daily manufacture. Our huge range of hydraulic hoses, competitive prices and masses of related products means you can buy all you hydraulic products from one source which can save you time and money in searching and sourcing products.

Details

Part no.: SAE 100R9A
Tube: seamless black synthetic rubber; oil resistan
Reinforcement: four layers of alternated, spiraled, high-tensile steel wire over a layer of fabric
Cover: Black synthetic rubber, resistant to abrasion, oil fuel and weathering.
MOQ: 200m each item; customer logo hoses needs total quantity 5000m of one order.

Technical Data Table

软管规格 Hose Size		内径 Inside diameter mm		钢丝层直径 Reinforcement Diameter mm		外径 Outside diameter mm		工作压力working pressure MPa	试验压力 Proof pressure MPa	爆破压力burst pressure MPa	最小弯曲 Min. bend Radius mm
mm	Inch	Min	Max	Min	Max	Min	Max	Max	试验压力 Proof pressure MPa	Min	最小弯曲 Min. bend Radius mm
12.5	1/2	15.5	13.5	19.4	21.0	23.8	25.4	28.0	56.0	112.0	180
19	3/4	18.6	19.8	26.6	28.8	30.6	32.2	21.0	42.0	84.0	240
25	1	25.0	26.4	34.5	36.1	38.5	40.9	21.0	42.0	84.0	300
31.5	1.1/4	31.4	33.0	43.3	45.6	49.2	52.4	17.5	35.0	70.0	420
38	1.1/2	37.7	39.3	49.6	52.0	55.6	58.7	14.0	28.0	56.0	500
51	2	50.4	52.0	63.9	66.2	69.9	73.0	14.0	28.0	56.0	660
