BB instead of BSP male 60 degrees seat with BSP female 60 degrees cone branch tee threads is a popular series among customers. YH is providing complete sizes of BB series which are showed on technical table data. YH can also produce other items with different threads such NPT, BSPT, metric, ORFS, JIC, etc. Our products are coated with zinc or chrome mostly before delivery.
Details

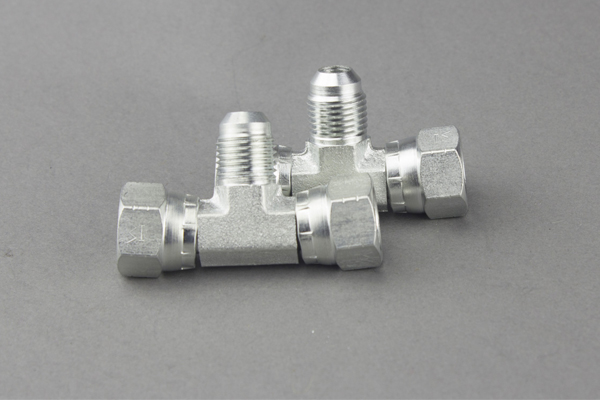

Part no.: BB(BSP Male 60 Degrees Seat with BSP Female 60 Degrees Cone Branch Tee)
Good color and luster. All the adapter tees are cleaned without burr and impurities
Our advantage: High precision; competitive prices; good material controlled
Shipping term: FOB(Ningbo) and CIF(Customer’ port) are commonly accepted
MOQ: 300PCS for re-produced items

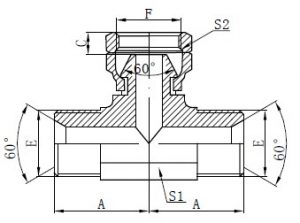

Technical Data Table
代号 PART NO. | 螺纹THREAD | 尺寸 DIMENSIONS | ||||
E | F | A | C | S1 | S2 | |
BB-02 | G1/8"X28 | G1/8"X28 | 19.8 | 5.5 | 11 | 14 |
BB-04 | G1/4"X19 | G1/4"X19 | 25 | 5.5 | 14 | 19 |
BB-06 | G3/8"X19 | G3/8"X19 | 26 | 6.5 | 17 | 22 |
BB-08 | G1/2"X14 | G1/2"X14 | 30 | 8 | 22 | 27 |
BB-12 | G3/4"X14 | G3/4"X14 | 40 | 11.5 | 27 | 32 |
BB-16 | G1"X11 | G1"X11 | 43 | 11.5 | 33 | 41 |
BB-20 | G1.1/4"X11 | G1.1/4"X11 | 59 | 12 | 44 | 50 |
Packing & Delivery
Packing Details :
Before packaging to the carton, each product will be covered by plastic cover.And we will use wooden box to hold cartons or packed into the pallet. Of course, we also allow to do customized package.
Delivery Details :
For the sample, we need 3 wors day to prepare, and delivery them by express. For the big order, the delivery time depends on the quantity; for 1 20FT, maybe 45 works day, and we usually do FOB and EXW by shipping.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: For the sample, it needs 3 works day. For the big order, generally it needs 5-10 works day for the stock;
if not, it needs 40~45 works day for producing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we can provide samples for checking before the firstly order, but it's not free, you need to pay the payment for the sample including its freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% payment. Payment>=1000USD, 30% T/T in advance, 70% balance before shippment.
