Double Hex Connector

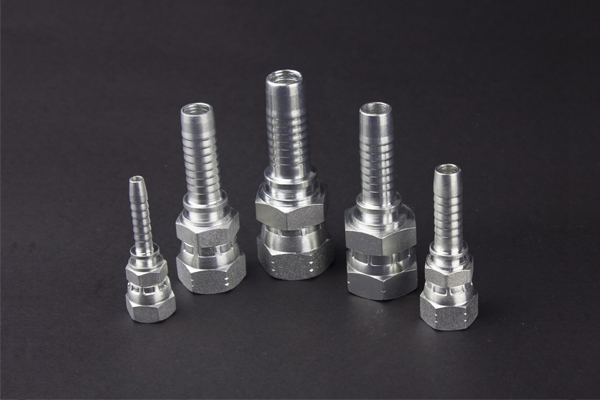

26712D fittings are JIC female 74 degrees cone seat with double hexagon for spiral hoses. 26712D are also ok with one or two wire braided hydraulic hoses such as R1AT, R2AT, 1SN, 2SN, etc. 26712D fittings are of good quality in YH Hydraulic which goal is providing best quality to customers as we can. If any interested products, please contact us.

Details

---

Part no.: 26712D(JIC Female 74°Cone Seat With Double Hexagon For Spiral Hose)

Thread types: metric, JIS, BSP, BSPT, ORFS, JIC , NPSM, NPT, etc.

Surface treatment: Trivalent Silver Zinc, Trivalent Yellow Zinc, Hexavalent Yellow Zinc, Chrome Plate, Electric-polish etc

Payment term: T/T or L/C at sight

Shipping term: FOB, CIF, CFR, etc.

Technical Data Table

---

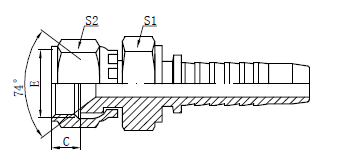

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH	C	S1	S2
26712D-08-08	3/4"X16	12	08	11	24	24
26712D-10-10	7/8"X14	16	10	11	27	27
26712D-12-12	1.1/16"X12	20	12	13.5	32	32
26712D-16-16	1.5/16"X12	25	16	14.5	41	41
26712D-20-20	1.5/8"X12	32	20	15.5	50	50
26712D-24-24	1.7/8"X12	40	24	18.5	55	55
26712D-32-32	2.1/2"X12	50	32	24.5	70	70
