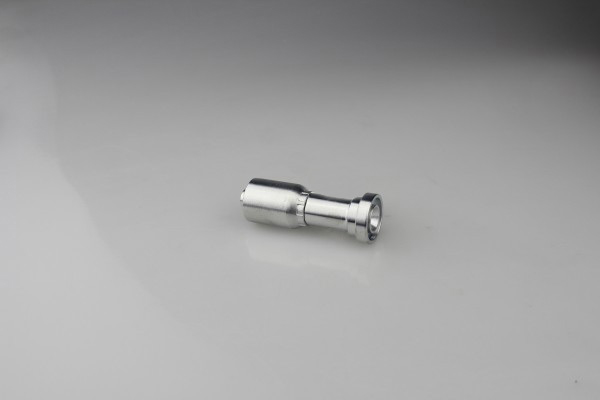

87611one piece fittings are SAE flange 6000PSI for one or two-wire integral fittings. Sizes from 08 to 32 are involved in YH production daily. 87611one piece fittings are 87611 fittings crimped with 00210 or 00110 ferrules by ferrule crimping machines. Good quality materials are put into production so that good quality products can be ensured. One piece fittings are all manufactured by CNC machine to control the high precision demands.
Details
Material:Carbon Steel, carbon steel, stainless steel, other requested material
Technics:Forged
Type:Coupling
Place of Origin:Zhejiang, China (Mainland)
Model Number:16711-1 steel fitting
Brand Name:YH
Connection:Male
Shape:Reducing
Head Code:Hexagon
Surface Color:white, golden yellow
Thread:JIC thread
Technique:Forged/Casting
Packing:Carton and Pallet
Certification:ISO9001:2000

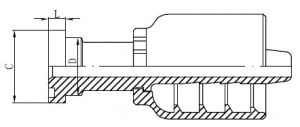

Technical Data Table
| 代号 PART NO. | 法兰尺寸 FLANGE SIZE | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| 公称内径DN | 标 号 DASH | C | D | L | ||
| 87611-08-08one piece | 1/2" | 12 | 08 | 31.8 | 23.9 | 7.9 |
| 87611-12-12one piece | 3/4" | 20 | 12 | 41.3 | 31.7 | 8.9 |
| 87611-16-16one piece | 1" | 25 | 16 | 47.6 | 38 | 9.6 |
| 87611-20-20one piece | 1.1/4" | 32 | 20 | 54 | 43.6 | 10.4 |
| 87611-24-24one piece | 1.1/2" | 40 | 24 | 63.5 | 50.8 | 12.7 |
| 87611-32-32one piece | 2" | 50 | 32 | 79.4 | 66.5 | 12.7 |
Product List
| 1. Swaged Metric Fittings | Mertic Flat Seal Fittings |
| Metric Multiseal Fittings | |
| Metric 60°Cone Seal Fittings | |
| Metric 74°Cone Seal Fittings | |
| Metric 24°Cone O-RING Seal L..T Fittings | |
| Metric 24°Cone O-RING Seal H.T.Fittings | |
| Metric Standpipe Straight Fittings | |
| JIS Metric 60°Cone Seal Fitting | |
| 2. Swaged British Fittings | BSP O-RING Seal Fittings |
| BSP Flat Seal Fittings | |
| BSP Multiseal Fittings | |
| BSP 60°Cone Seal Fittings | |
| BSPT Fittings | |
| JIS BSP 60°Cone Seal Fittings | |
| 3. Swaged American Fittings | SAE O-RING Seal Fittings |
| ORFS Flat Seal Fittings | |
| NPSM 60°Cone Seal Fittings | |
| JIC 74°Cone Seal Fittings | |
| NPT Fittings SAE Flange L.T. Fittiings | |
| SAE Flange H.T.Fittings | |
| 4. Staplelok Fittings | Banjo Double connection |
| interlock Hose Fittings | |
| 5. Ferrule | FERRULE for SAE100R1AT/ EN 853 1SN HOSE |
| FERRULE for SAE100R1A EN 853 1ST HOSE | |
| FERRULE for SAE100R2AT/DIN20022 2SN HOSE | |
| FERRULE for SAE100R2A/EN 853 2SN HOSE | |
| FERRULE for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC | |
| FERRULE for 4SP,4SH/10-16,R12-06-16 HOSE | |
| FERRULE for 4SH,R12/32 HOSE | |
| 6. Metric Adapters | Metric Thread O-RING Face Seal Adapters |
| Metric Thread Bite Type Tube Adapters | |
| JIS Metric Thread 60°Cone Adapters | |
| Metric Thread 74°Cone Flared Tube Adapters | |
| 7. British Adapters | BSP Thread 60°Cone Adapters |
| JIS BSP Thread 60°Cone Adapters | |
| BSPT Thread Adapters | |
| 8. American Adapters | ORFS Adapters JIC 74°Cone Flared Tube Adapters |
| NPT Thread Adapters |
