Tube-Fittings

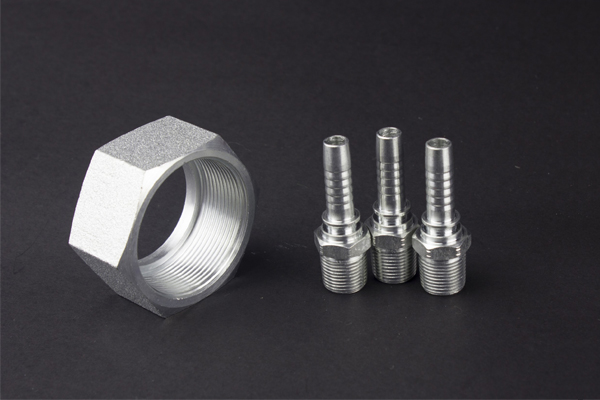

14212 fittings are ORFS male with o-ring seal for spiral hoses. YH provides complete sizes production of 14212 fittings from 1/4’’ to 2’’. 14212 fittings are manufactured with smooth surface finish, high precision and right tolerance required. All fittings from YH Hydraulic are produced by CNC machines.

Details


Material:Stainless Steel, AISI 304, 304L ,316 ,316L
Technics:Casting
Type:Coupling
Place of Origin:China (Mainland)
Brand Name:YH
Connection:Thread/Welding
Shape:Equal
Head Code:Round
Size:1/8"-4"
Certificate:ISO 9001:2008, CE
Thread:BSP, BSPT, BSPP, NPT, DIN2999, ISO 7/1
Technic:Swaged

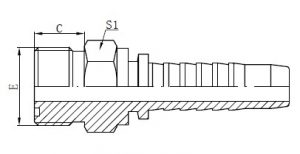

Technical Data Table


代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BOREO型圈/O-RING尺  寸   DIMENSIONS
公称内径DN标 号 DASH(外型X线径)CS1
14212-08-0813/16"X16120815.98 X1.781522
14212-10-101"X14161019.16 X1.7816.527
14212-12-121.3/16"X12201222.33 X1.781732
14212-16-161.7/16"X12251627.08 X1.7818.541
14212-20-201.11/16"X12322033.43 X1.7819.546
14212-24-242"X12402441.38 X1.7823.555

Products show


CE and ISO 9001:2008 Certifications:
Manufacture equipment and process:
Testing Equipment:
To make sure the high quality, we carry on the testing includes Chemical Analysis Test, Leakage Test,
Pressure Test, Measurement Test… etc.

Packing


Safety and professional packing to avoid any damage during transportation.
Domestic and oversea fair scene:
Every year, we anticipate at least four times exhibition which let us know more about the market and
customer’s requsts.
Sales Volume and Market Analysis of recent years:
Thanks for your interesting on our product stainless steel 3/4" Hydraulic Hose Coupling(SAE Flange Series) Hope we can get your enquiry by return. Warmly welcome your visiting to our factory in advance.
Wish you a great success!



FAQ


1. What is the acceptable MOQ?
For this Roke male connector ,our acceptable MOQ is 10pcs.
2. What is the Delivery time?
For samples,we usually have them in stock, so the delivery time will be quite short .
For normal order, the delivery time should be in 2 weeks.
3.What is the acceptable payment term?
Trade Assurance ,T/T, Western union,MoneyGram.
