1B series instead of BSP male 60 degrees seat bonded seal threads have sizes from 1/8’’ to 2’’ that are popularly producing items in YH Hydraulic. 1B adapter fittings come in material of 45 carbon steel mostly. But other materials like stainless steel or brass are acceptable in our factory. These adapter fittings are finished with zinc plated or chrome plated.
Details

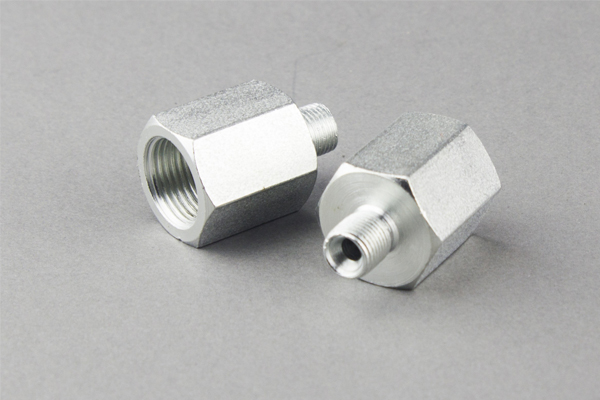

Part no.: 5B(BSP male 60 degrees seat bonded seal with BSP female threads)
5B type: Straight; one side BSP male, the other BSP female
5B advantage: Promise quality; Eaton standard; Reasonable prices
Usage: easy to install and disconnected
OEM service: available
Technical Data Table
代号 PART NO. | 螺纹THREAD | 尺寸 DIMENSIONS | |||
E | F | A | S1 | L | |
5B-02-04 | G1/8"X28 | G1/4"X19 | 10 | 19 | 28 |
5B-04-02 | G1/4"X19 | G1/8"X28 | 12 | 19 | 30 |
5B-04 | G1/4"X19 | G1/4"X19 | 12 | 19 | 30 |
5B-04-06 | G1/4"X19 | G3/8"X19 | 12 | 22 | 32 |
5B-06-04 | G3/8"X19 | G1/4"X19 | 13.5 | 22 | 33.5 |
5B-06 | G3/8"X19 | G3/8"X19 | 13.5 | 22 | 33.5 |
5B-06-08 | G3/8"X19 | G1/2"X14 | 13.5 | 27 | 33.5 |
5B-08-06 | G1/2"X14 | G3/8"X19 | 16 | 27 | 36 |
5B-08 | G1/2"X14 | G1/2"X14 | 16 | 27 | 36 |
5B-08-10 | G1/2"X14 | G5/8"X14 | 16 | 30 | 42 |
5B-08-12 | G1/2"X14 | G3/4"X14 | 16 | 32 | 40 |
5B-10-08 | G5/8"X14 | G1/2"X14 | 17.5 | 30 | 44 |
5B-12-08 | G3/4"X14 | G1/2"X14 | 18.5 | 32 | 43 |
5B-12 | G3/4"X14 | G3/4"X14 | 18.5 | 32 | 42.5 |
5B-12-16 | G3/4"X14 | G1"X11 | 18.5 | 41 | 52.5 |
5B-16-12 | G1"X11 | G3/4"X14 | 20.5 | 41 | 54.5 |
5B-16 | G1"X11 | G1"X11 | 20.5 | 41 | 54.5 |
5B-16-20 | G1"X11 | G1.1/4"X11 | 20.5 | 50 | 37.5 |
5B-20-16 | G1.1/4"X11 | G1"X11 | 20.5 | 50 | 57.5 |
5B-20 | G1.1/4"X11 | G1.1/4"X11 | 20.5 | 50 | 56.5 |
5B-20-24 | G1.1/4"X11 | G1.1/2"X11 | 20.5 | 55 | 57.5 |
5B-24 | G1.1/2"X11 | G1.1/2"X11 | 23 | 55 | 60 |
5B-32-24 | G2"X11 | G1.1/2"X11 | 23 | 70 | 60 |
5B-32 | G2"X11 | G2"X11 | 25.5 | 70 | 62.5 |
