China Supplier High Quality 4SH Interlock Sleeves

00601 interlock ferrule is for R13 or DIN 20023 4SH hoses. Ferrules are connectors for hoses and fittings to make hose assemblies. Thus its malleability values much when crimping hose assemblies. Ferrules in YH factory come in material of mild steel which can ensure its malleability. Related e-catalog is posted below for customers to view popular products from YH Hydraulic.

Details

---

Part no.: 00601(Interlock Ferrule For R13/DIN 20023 4SH Hose)
Strength: High quality; Prompt delivery; Reasonable prices; Full range specifications
Custom-orientated service: Available
Quality control: ISO9001:2008
Standard: based on Winner(Eaton) production standard
Processing equipment: CNC machines(ensure its high precision)
Special specification: welcomed, please contact sales for discussion

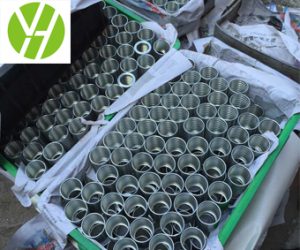

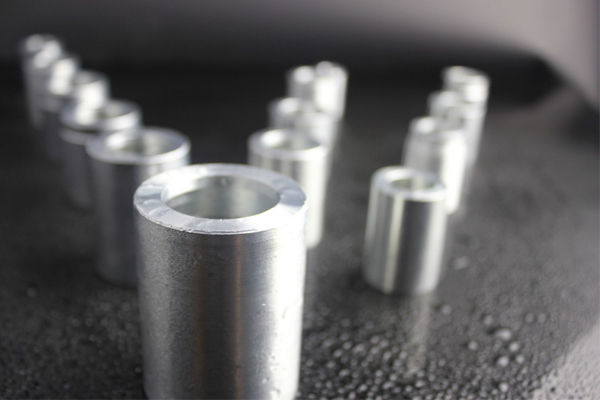

1. Pictures for 4SH Interlock Sleeves, hose ferrules, hose sleeves, hose collars

2. Different models of hose ferrules for your choice
Ferrules for SAE 100R1AT, DIN EN853 1SN: 00110 and 00100
Ferrules for SAE 100R2AT, DIN EN853 2SN: 00210 and 00200
Ferrules for SAE 100R1AT, DIN EN853 1SN, SAE 100R2AT, DIN EN853 2SN: 03310
Ferrules for DIN EN856 4SP, DIN EN865 4SH, SAE 100R12: 00400
Ferrules for SAE 100R7/R8 hoses: 00018
(See details on YH catalog)
3. Raw Material
20 carbon steel 316 stainless steel 304 stainless steel
4. Flow chat
YH Hydraulic has rich experiences in 4SH Interlock Sleeves production. We are able to supply different kinds of hydraulic hose ferrules, such as ferrules for R1AT 1SN hoses, ferrules for R2AT 2SN hoses, ferrules for 4SP 4SH R12 hoses, etc. Also we can produce sizes with customers’ requirements. It is a perfect idea to crimp good ferrules with fittings to make hose assemblies without leaking.
Raw material cutting--Raw material forging--CNC machines fashioning--Marking part no. on ferrule body--Galvanization--Packing
5. Coating Options
White zinc plated Yellow zinc plated Cr3 plated

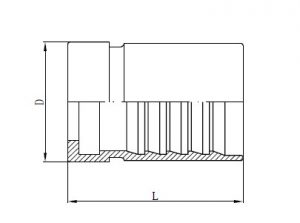

Technical Data Table

---

Our-Services

---

Our-services-and-certificates:
Our-QC-procedure:
As-we-had-more-than-5-professional-and-technical-personal,-they-ensure-100%-products-checking.
1.-Material-checking:-strictly-control-of-material-using,-meet-international-requested-standards;
2.-semi-finished-products-inspection:-product-inspection-before-100%-finished-;
3.-production-line-test:-with-work-team-or-data-engineer-who-will-inspect-matchines-and-lines-at-fixed-period.
4.-finished-prodcuct-inspection:-quality-and-property-test-before-products-are-plated-zinc,-packed-and-loaded.
Shipping-&-Service:
1.-Orders-will-be-dispatched-around-in-30-days-after-payment,-depending-on-quantities.
2.-We-Always-choose-the-most-economical-and-reliable-shipping-company-to-make-sure-you-receive-the-goods-in-time.
3.-The-tracking-number-will-be-provided-to-you-once-the-consignment-is-shipped
4.-Professional-customer-service-to-answer-your-questions-or-fix-problems-regarding-your-order.
