China Manufacturer Good Quality Hydraulic Fitting Thread Male Bsp Adapter

1B series instead of BSP male 60 degrees seat bonded seal threads have sizes from 1/8’’ to 2’’ that are popularly producing items in YH Hydraulic. 1B adapter fittings come in material of 45 carbon steel mostly. But other materials like stainless steel or brass are acceptable in our factory. These adapter fittings are finished with zinc plated or chrome plated.

Details

Part no.: 1B(BSP Male 60 Degrees Seat Bonded Seal)
Type: Straight(1B); 45 degrees Elbow(1B4); 90 degrees(1B9)
Color: White; Yellow; Silver
Sizes: showed on technical data table are popular items; others if specifications provided are available.
Stock: most items are kept as stock products for quick delivery time.

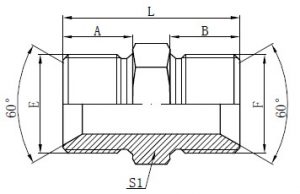

Technical Data Table

代号 PART NO.	螺纹THREAD		尺寸 DIMENSIONS
代号 PART NO.	E	F	A	B	S1	L
1B-02	G1/8"X28	G1/8"X28	10	10	14	26
1B-02-04	G1/8"X28	G1/4"X19	10	12	19	28
1B-02-06	G1/8"X28	G3/8"X19	10	13.5	22	31.5
1B-02-08	G1/8"X28	G1/2"X14	10	16	27	34
1B-04	G1/4"X19	G1/4"X19	12	12	19	30
1B-04-06	G1/4"X19	G3/8"X19	12	13.5	22	33
1B-04-08	G1/4"X19	G1/2"X14	12	16	27	36
1B-04-10	G1/4"X19	G5/8"X14	12	17.5	30	38.5
1B-06	G3/8"X19	G3/8"X19	13.5	13.5	22	35
1B-06-08	G3/8"X19	G1/2"X14	13.5	16	27	37.5
1B-06-10	G3/8"X19	G5/8"X14	13.5	17.5	30	40
1B-06-12	G3/8"X19	G3/4"X14	13.5	18.5	32	42
1B-08	G1/2"X14	G1/2"X14	16	16	27	40
1B-08-10	G1/2"X14	G5/8"X14	16	17.5	30	42.5
1B-08-12	G1/2"X14	G3/4"X14	16	18.5	32	44
1B-10	G5/8"X14	G5/8"X14	17.5	17.5	30	44
1B-10-12	G5/8"X14	G3/4"X14	17.5	18.5	32	46
1B-10-16	G5/8"X14	G1"X11	17.5	20.5	41	50
1B-12	G3/4"X14	G3/4"X14	18.5	18.5	32	47
1B-12-16	G3/4"X14	G1"X11	18.5	20.5	41	49
1B-12-20	G3/4"X14	G1.1/4"X11	18.5	20.5	50	56
1B-16	G1"X11	G1"X11	20.5	20.5	41	53
1B-16-20	G1"X11	G1.1/4"X11	20.5	20.5	50	57
1B-16-24	G1"X11	G1.1/2"X11	20.5	23	55	60
1B-20	G1.1/4"X11	G1.1/4"X11	20.5	20.5	50	58
1B-20-24	G1.1/4"X11	G1.1/2"X11	20.5	23	55	61
1B-24	G1.1/2"X11	G1.1/2"X11	23	23	55	63
1B-24-32	G1.1/2"X11	G2"X11	23	25.5	70	66
1B-32	G2"X11	G2"X11	25.5	25.5	70	69
