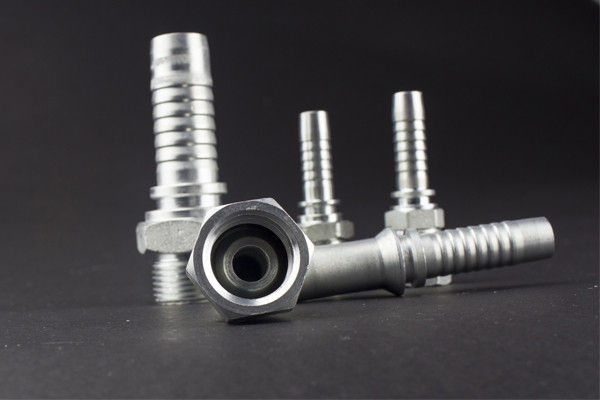

China Competitive Price Non-crimped ORFS Coupling

34241 fittings are 45 degrees ORFS female flat seat and non crimped types. ORFS is short for O-Ring Face Seal which uses an o-ring(SAE J515) in a groove on the male face side. This is mated to flat face without an o-ring on the female swivel side, forming a seal without metal deformation much the same as an SAE four bolt split flange connection without the bolts.

Details

---

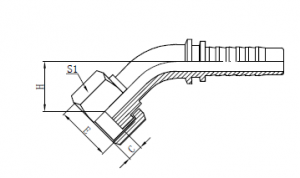

Part no.: 34241(45°ORFS Female Flat Seat: non-crimped type)
Following hoses can be selected:
SAE 100R2AT Hydraulic Hose(R2)
SAE 100R16 Hydraulic Hose(R16)
SAE 100R17 Hydraulic Hose(R17)
Tough Cover Hydraulic Hose(KT)
Hydraulic Jack Hose(HJK)
SAE 100R1AT Hydraulic Hose(R1)
SAE 100R3 General Purpose Hose(R3)

Technical Data Table

---
