Details

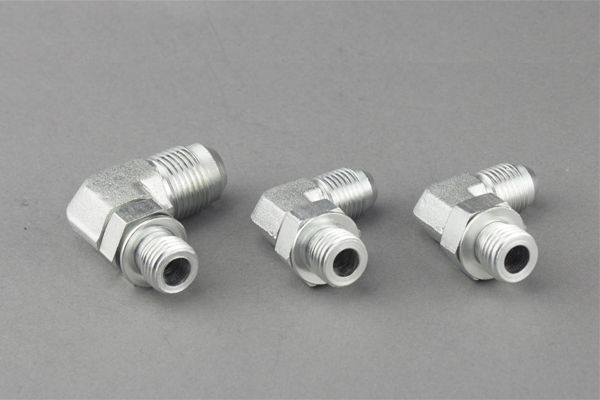

Part no.: 1QT9(90 Degrees Metric Male 74 Degrees Cone and BSPT Male)
Standard: Winner(Eaton) production standard
Delivery time: Less than 45 days for no matter a big or small order.
Equipments: CNC machines; automatic lathe; hand lathe grinder; thread rolling machine; tapping drilling machines; tube elbowing machine; etc.
Samples service: less than 5pcs are free for checking quality.

Technical Data Table

代号

PART NO.

螺纹THREAD尺寸 DIMENSIONS
 E FABS1
1QT9-12-02M12X1.5R1/8"X2826.523.511
1QT9-12-04M12X1.5R1/4"X19292714
1QT9-14-02M14X1.5R1/8"X28292714
1QT9-14-04M14X1.5R1/4"X19292714
1QT9-16-04M16X1.5R1/4"X19302817
1QT9-16-06M16X1.5R3/8"X19302817
1QT9-16-08M16X1.5R1/2"X14373722
1QT9-18-04M18X1.5R1/4"X19333319
1QT9-18-06M18X1.5R3/8"X19333319
1QT9-22-06M22X1.5R3/8"X19373722
1QT9-22-08M22X1.5R1/2"X14373722
1QT9-27-08M27X1.5R1/2"X14434327
1QT9-27-12M27X1.5R3/4"X14434327
1QT9-27-16M27X1.5R1"X11524733
1QT9-30-12M30X2R3/4"X14524733
1QT9-36-16M36X2R1"X11524733
1QT9-39-16M39X2R1"X11595444
1QT9-42-20M42X2R1.1/4"X11595444
1QT9-45-16M45X2R1"X11605750
1QT9-45-20M45X2R1.1/4"X11605750
1QT9-45-24M45X2R1.1/2"X11605750
