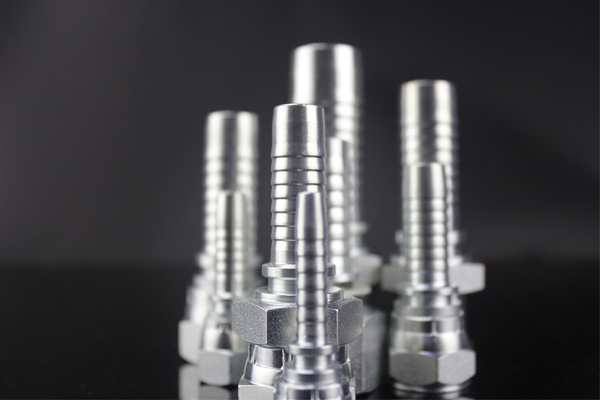

Carbon Steel Hydraulic Fitting Metric Male 24 Degree CONE SEAT H.T. Pipe Fitting

10211 series are JB metric male thread with o-ring seal face. 10211 series fittings are suitable for one or two steel wire braided hoses. To be equipped with spiral hoses, 10212 series fittings are your right choice. YH insists on providing customers with best material quality and well manufactured fittings. Also we provide reliable service to potential and cooperated customers.

Details

---

Part no.: 10211(JB Metric Male O-ring Seal)

Advantage: Perfect surface; smoothness without burrs and impurities

Sizes: Different fittings sizes apply to related hydraulic hoses

Quality: based on Winner(Eaton) standard; best quality material; well packed; ISO certificated

Samples policy: free samples can be tested for quality

Other items: can be found in “Brochure Download(PDF)” button

Technical Data Table

---

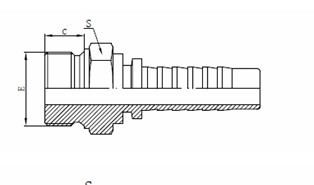

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH	C	S
10211-14-04	M14X1.5	6	04	11	17
10211-16-05	M16X1.5	8	05	11	19
10211-18-06	M18X1.5	10	06	11	22
10211-22-08	M22X1.5	12	08	12	27
10211-27-10	M27X1.5	16	10	13	32
10211-30-12	M30X1.5	20	12	14	36
10211-36-14	M36X2	22	14	16	41
10211-39-16	M39X2	25	16	18	46
10211-45-20	M45X2	32	20	20	55
10211-52-24	M52X2	40	24	22	60

,Hydraulic Fitting Metric Male 24 Degree Cone Seat H.T.DIN3853

PART NO	THREAD E	HOSE BORE		TUBE O.D.	DIMENSIONS
		DN	DASH		C	S1
P10511-14-04	M14X1.5	6	04	6	13.5	17
-16-04	M16X1.5	6	04	8	13.5	17
-18-04	M18X1.5	6	04	10	13.5	19
-20-05	M20X1.5	8	05	12	13.5	22
-20-06	M20X1.5	10	06	12	13.5	22
-22-05	M22X1.5	8	05	14	14	24
-22-06	M22X1.5	10	06	14	14	24
-24-08	M24X1.5	12	08	16	14	27
-30-10	M30X2	16	10	20	19	32
-30-12	M30X2	20	12	20	19	32
-36-12	M36X2	20	12	25	20	38
-36-16	M36X2	25	16	25	20	38
-42-16	M42X2	25	16	30	20	46
-42-20	M42X2	32	20	30	20	46
-52-20	M52X2	32	20	38	22	55

Quick Details

---

Brand Name: YH

Place of Origin:Zhejiang,China(Mainland)

Delivery Detail:1-2weeks

Package Detail:Nylon plastic+corrugated carton +Multiple plywood case

Custom-orientated Service: produce according to your drawings or sample, offer custom-design

Our advantage: 1. High quality 2. Rich inventory  3. Prompt delivery 4. Reasonable price

Quick Details

---

Type: Fittings
Model Number: P10511
Brand Name: YH
Place of Origin: Zhejiang, China (Mainland)
Material:: 45#Carbon Steel
Product name:: Carbon Steel Hydraulic Fitting Metric Male Pipe Fitting
Color: White
Usage: Kinds Hydraulic Hose
Application: Machinery

---
